EMU M-Center
€827.05*
available from stock
Available, delivery time: 1-2 days
Product number:
210.000.00
Manufacturer:
EMU Electronic AG
Manufacturernumber:
210.000.00
EAN:
7649991279250
Product information "EMU M-Center"
The EMU M-Center has an integrated high performance M-Bus level converter, which allows a quick configuration and commissioning.
The automated reading of up to 250 M-Bus meters guarantees an error-free and continuous data acquisition for later analysis and billing according to ISO 50001.
Energy consumption becomes transparent and potential savings are identified.
The automated reading of up to 250 M-Bus meters guarantees an error-free and continuous data acquisition for later analysis and billing according to ISO 50001.
Energy consumption becomes transparent and potential savings are identified.

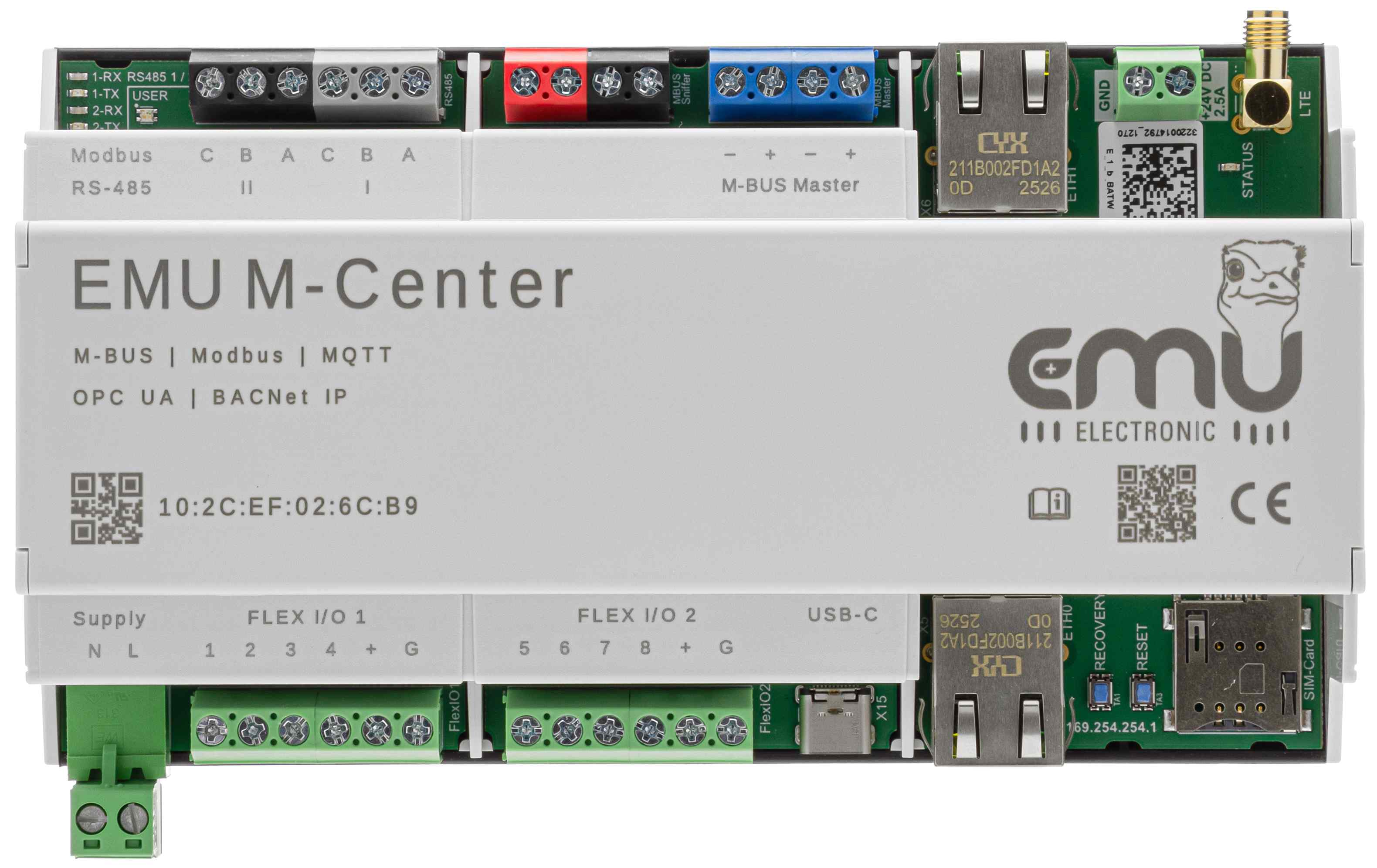

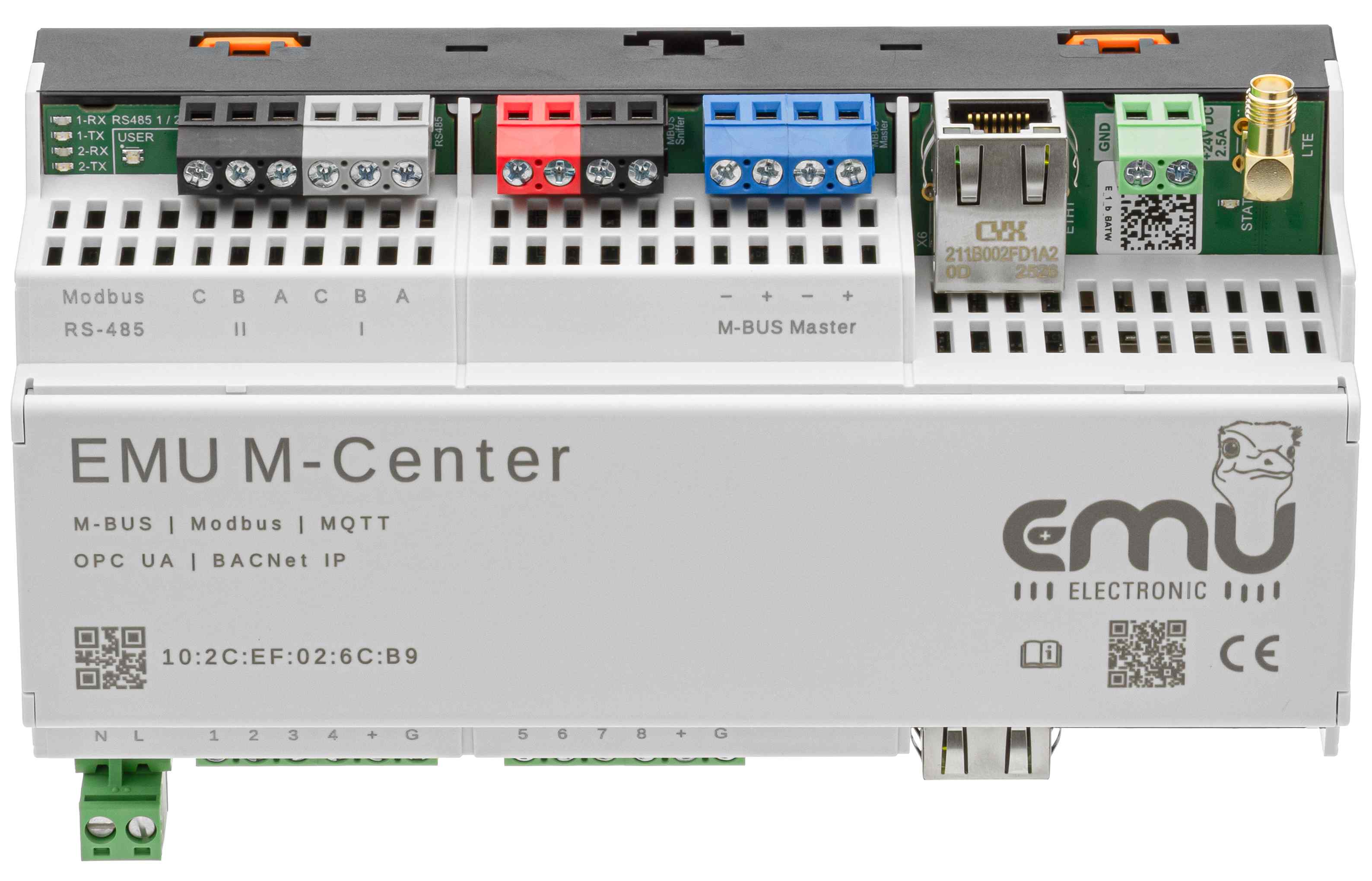

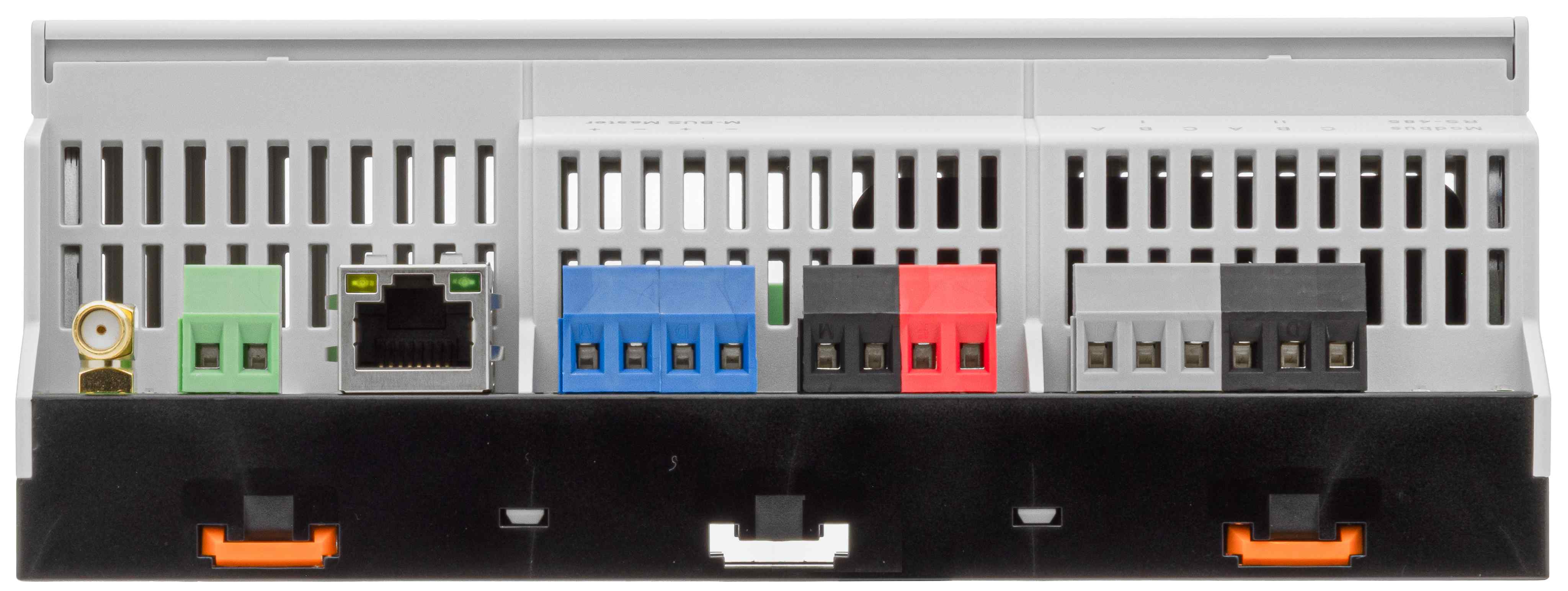

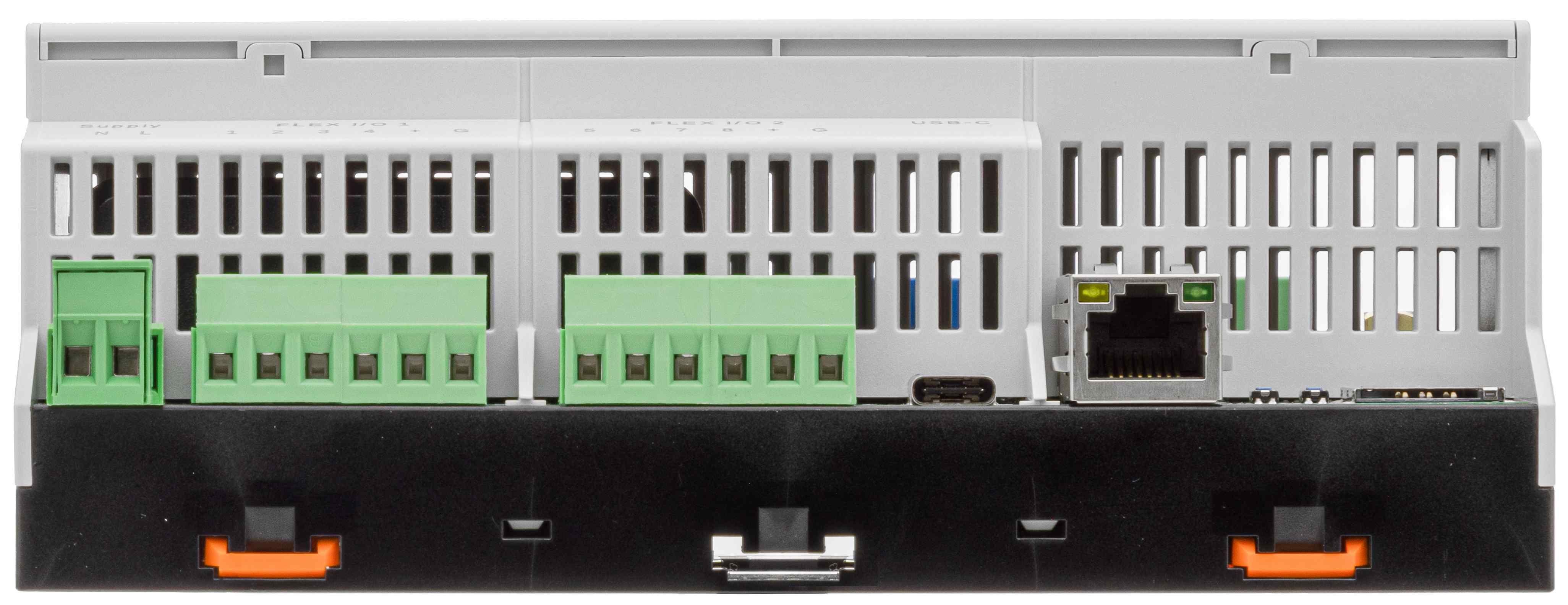

Hardware features
- Integrated M-Bus level converter for up to 250 M-Bus slaves | Ex Factory license for 20 M-Bus meters active
- 2x RS485 interface for Modbus RTU readout (license optional)
- 2x RJ45 interface (1x for LAN connection and 1x service port)
- 8x Flex I/O's
- Integrated SIM card LTE modem
- USB interface
- 230V power supply
Integration into existing systems:
- BACnet IP gateway function (option)
- OPC UA gateway function (option)
- MQTT (option)
- Modbus TCP (option)
Firmware and software functions
- Connection to Joulio-Web Device Management | Digital Twin and secure firmware update
- Data acquisition from M-Bus, Modbus RTU and Modbus TCP devices
- Suitable for heat, water, gas and electric meters with M-Bus
- System connection via optional MQTT, OPC UA and BACnet IP license
- Professional data processing Firmware update & backup via web interface Data recording and export for analysis
- Energy consumption becomes transparent for targeted measures
- Suitable for energy data management according to ISO 50001
Features and requirements according to ISO 50001
- Automated reporting
- Continuous data evaluation
- Visualization incl. individual charts
- Integration into existing systems
- Alerting
- Support & Update Service
Configuration

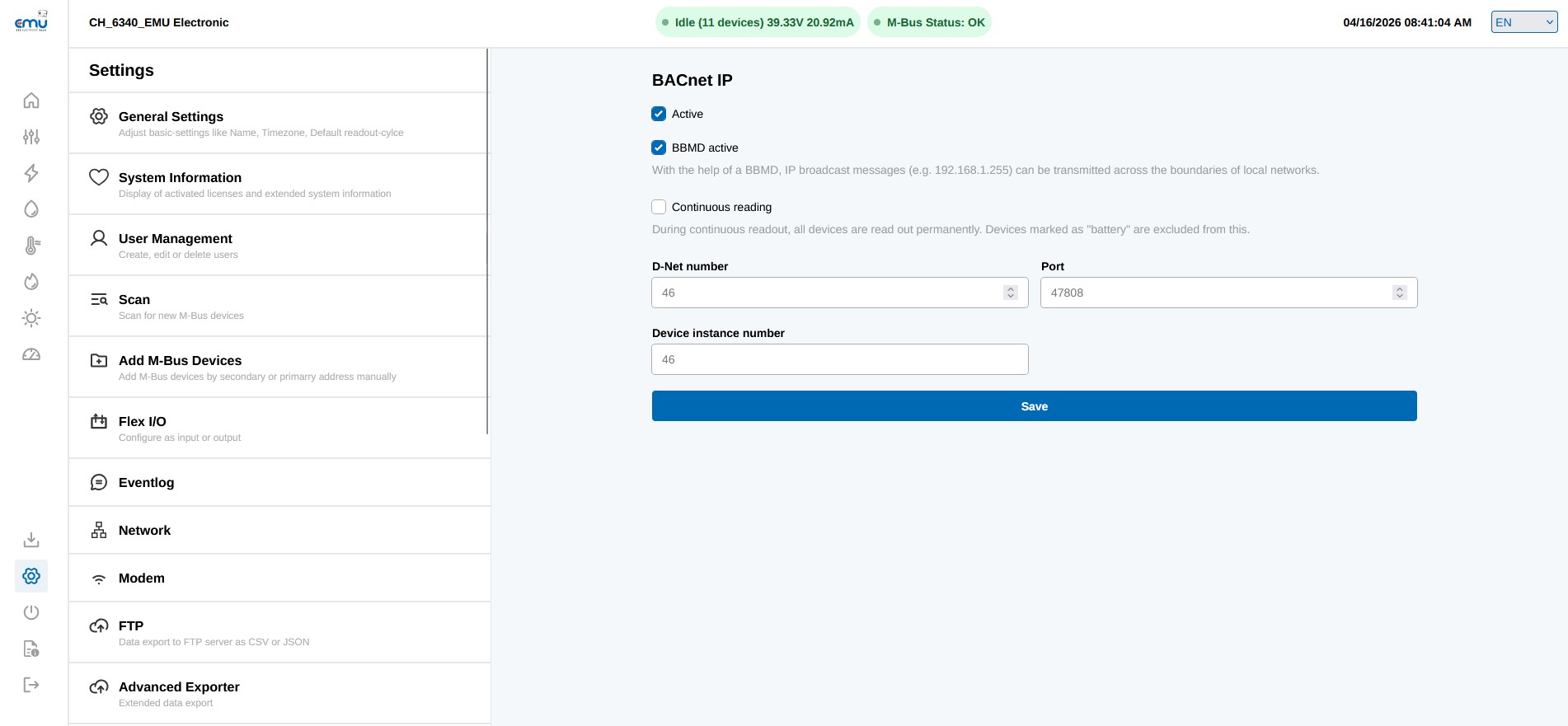

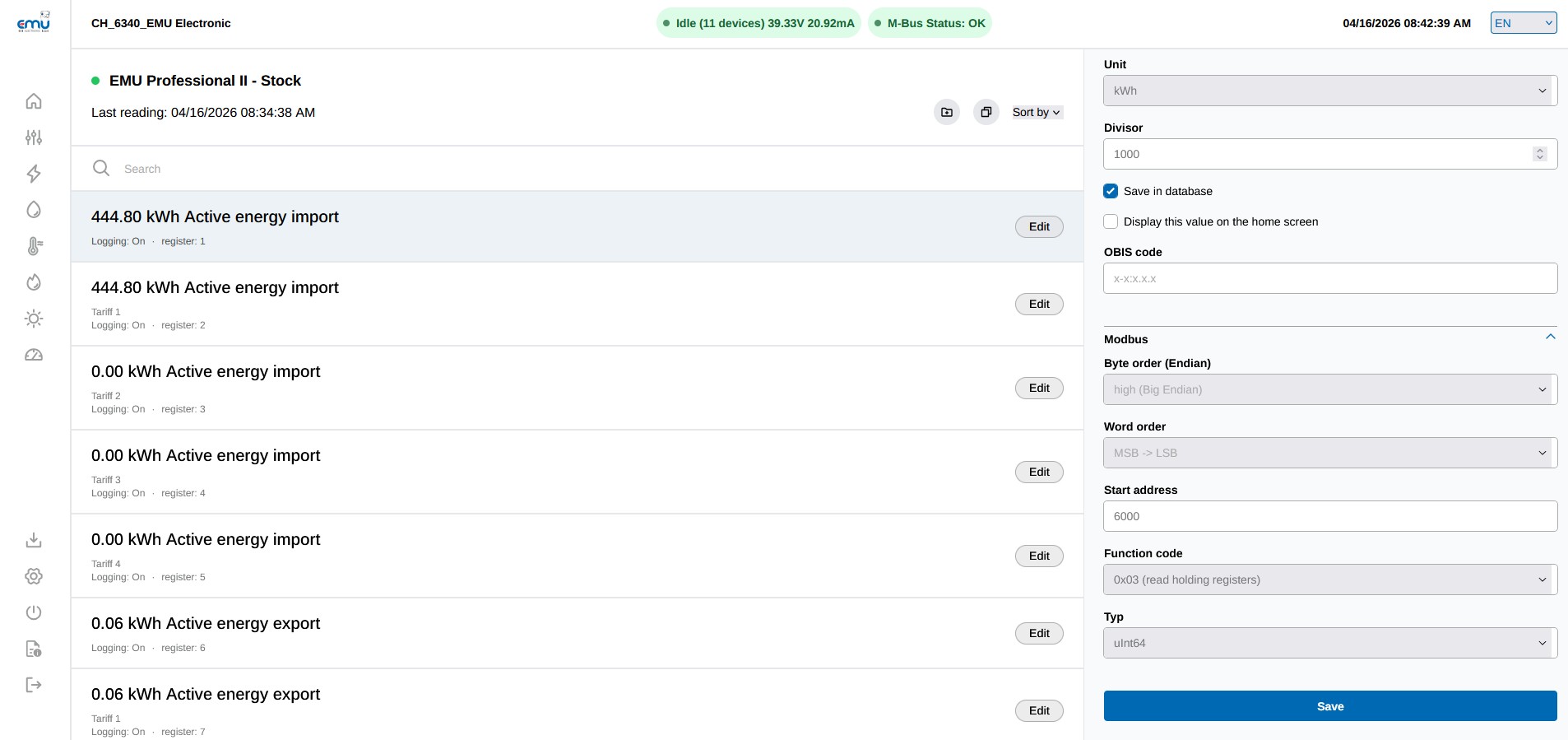

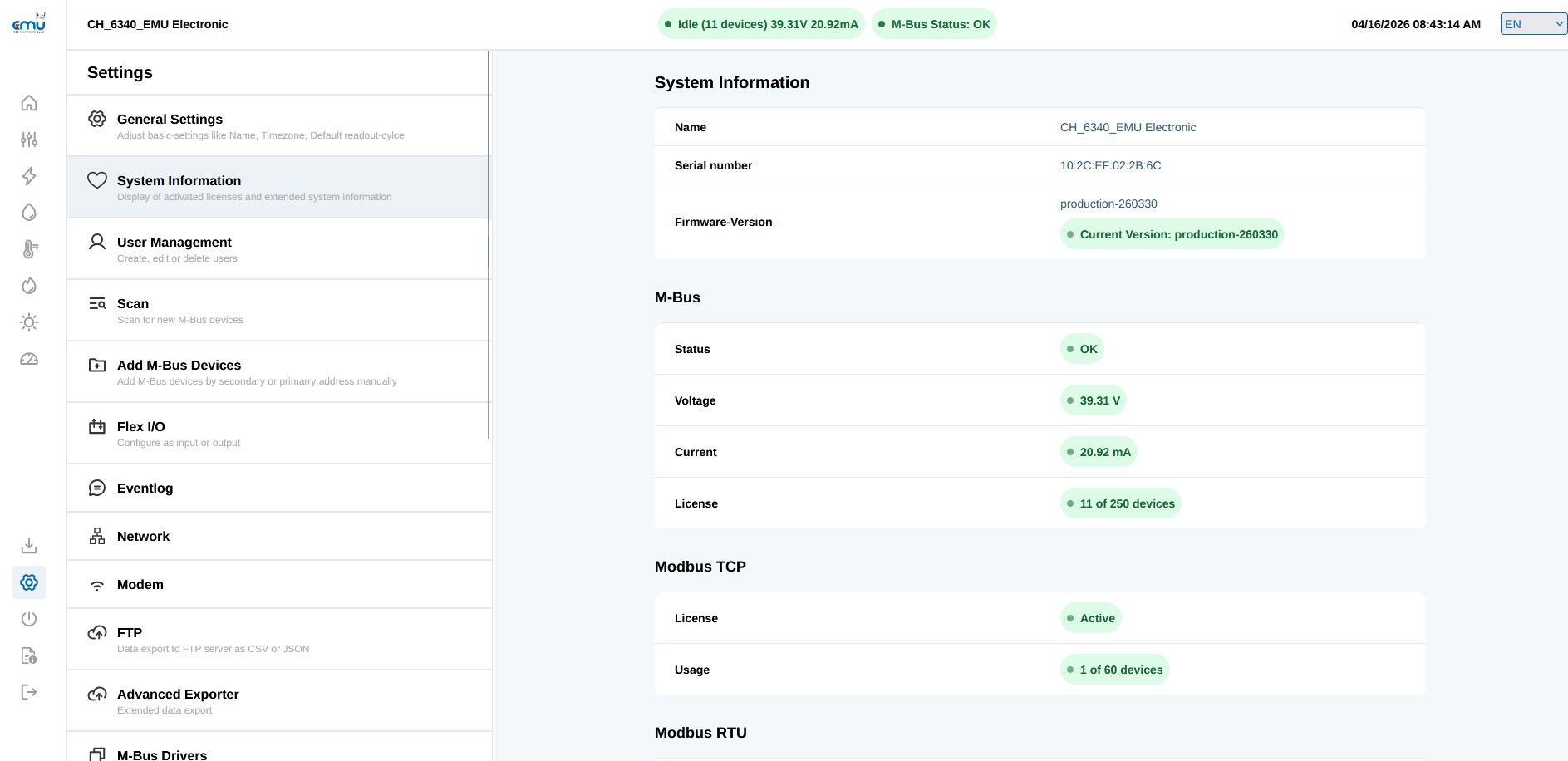

The complete configuration of the M-Center is done via an appealing, simple user interface, which can be done with any common web browser (HTML 5).
Visualization
For visualization of energy consumption and instantaneous measured values we recommend the energy management software Joulio-Web.Commissioning
- Automated meter search
- DHCP
- RJ45 service port
Login
Zubehör | Accessories
M-Center License upgrade 20 to 60 M-Bus devices
Software license extension for the EMU M-Center.
M-Bus license extension | 20 to 60 From 20 M-Bus devices to a maximum of 60
M-Center License upgrade 20 to 120 M-Bus devices
Software license extension for the EMU M-Center.
M-Bus license extension | 20 to 120 From 20 M-Bus devices to a maximum of 120
M-Center License upgrade 20 to 250 M-Bus devices
Software license extension for the EMU M-Center.
M-Bus license extension | 20 to 250 From 20 M-Bus devices to a maximum of 250
