Power meter

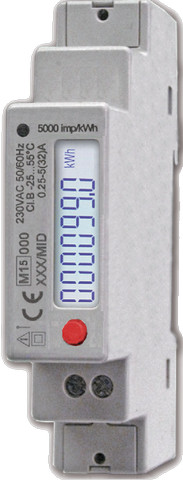

LCD Display 123456.7 kWh1 TE Breit 18mm, 230V, 5(32)A, CE50 /60 Hz, Class B (1%)CE and MID B+D approvalM-Bus interface according to EN13757-2,-3

LCD Display 123456.7 kWh1 TE Breit 18mm, 230V, 5(40)A, CE50 /60 Hz, Class B (1%)CE and MID B+D approval

The 3-phase MID approved power meter EMU Professional II 3/100 for DIN rail mounting features a built-in S0 pulse output and is designed for submetering and cost savings. Features Bidirectional three-phase power meter 3x230/400V Direct connection up to 100 A MID B+D, for billing purposes Accuracy class B (1%) Power meter readings Active energy consumption (kWh) and supply (kWh) Reactive energy consumption (kvarh) and supply (kvarh) Active power (kw)  Reactive power (kvar)  Apparent power (kVA) Current (A) Frequency (Hz) Number of voltage failures LCD-Display Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.Display language e.g. english or german can be selected by the keys. Power meter configuration Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.The control keys are used to configure the M-Bus primary and secondary address, and the baud rate. S0 pulse output The 3-phase power meter EMU Professional II 3/100 features a configurable S0 pulse output for active or reactive energy  Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000 Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms Power meter configuration ex factory S0 pulse output: 1'000 Impulse/ 40 ms Manufacturer The 3-phase power meter meter is produced in Switzerland by EMU Electronic Ltd.More information: https://www.emuag.ch

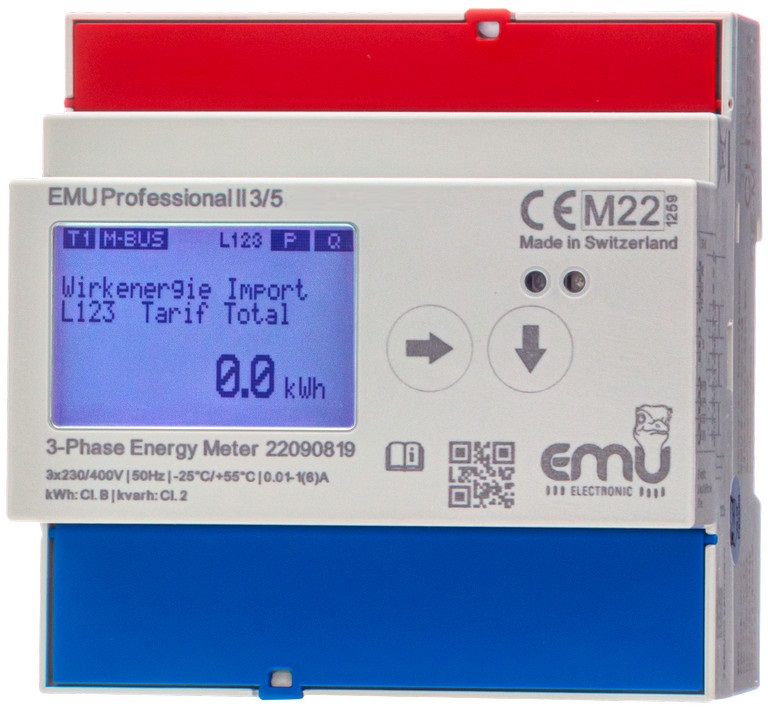

The 3-phase bidirectional MID B+D approved power meter EMU Professional II 3/5 with S0 pulse output for DIN rail mounting is suitable for submetering and energy cost billing.  Features 3-phase indirect power meter with pulse output 3x230/400V Indirect using /5A and /1A current transformers Current transformer ratio configurable several times using the service key MID B+D, for billing purposes Accuracy class B (1%) Power meter readings Active energy consumption (kWh) and supply (kWh) Reactive energy consumption (kWh) and supply (kWh) Active power (kw)  Reactive power (kvar)  Apparent power (kVA) Current (A) Frequency (Hz) Number of voltage failures Current transformer ratio LCD-Display Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.Display language e.g. english or german can be selected by the keys. Power meter configuration Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.The current transformer ratio (1 or 5 A transformer, up for up to 20000/5 or 4000/1 A) can be configurable several times. S0 pulse output The 3-phase indirect power meter EMU Professional II 3/5 features a configurable S0 pulse output for active or reactive energy  Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000 Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms Energy meter configuration ex factory S0 pulse output: 10 Impulse/ 20 ms Power meter manufacturer The 3-phase indirect power meter meter is produced in Switzerland by EMU Electronic Ltd.More information: https://www.emuag.ch

The 3-phase bidirectional power meter EMU Professional II 3/5 M-Bus for DIN rail mounting is suitable for energy management as per ISO 50001 and energy cost billing. Features Bidirectional three-phase power meter with M-Bus interface wired M-Bus interface 3x230/400V Indirect using /5A and /1A current transformers Current transformer ratio configurable several times using the service key MID B+D, for billing purposes Accuracy class B (1%) M-Bus interface The built-in M-Bus interface is protected against dirt and manipulation and is designed according to EN13757-2, -3 (previously EN1434-3). The power meter EMU Professional II 3/5 M-Bus communicates via M-Bus at 300, 600, 1,200, 2,400, 4,800 and 9,600 baud. The M-Bus load of the EMU Professional II 3/5 M-Bus is only 1.5 mA, which corresponds to a standard load.M-Bus connection: The EMU Professional 3/5 M-Bus 2x2 M-Bus connection terminals for easy M-Bus looping. Power meter readings Active energy consumption (kWh) and supply (kWh) Reactive energy consumption (kWh) and supply (kWh) Active power (kw)  Reactive power (kvar)  Apparent power (kVA) Current (A) Frequency (Hz) Number of voltage failures Current transformer ratio LCD-Display Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.Display language e.g. english or german can be selected by the keys. Power meter configuration Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.The current transformer ratio (1 or 5 A transformer, up for up to 20000/5 or 4000/1 A) can be configurable several times.The control keys are used to configure the M-Bus primary and secondary address, and the baud rate. M-Bus baud rate: Via keys or free EMU MB-Connect software M-Bus primary address: Via keys or free EMU MB-Connect software M-Bus secondary address: Via keys or free EMU MB-Connect software S0 pulse output The 3-phase indirect power meter EMU Professional II 3/5 M-Bus features a configurable S0 pulse output for active or reactive energy  Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000 Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms Indirect power meter configuration ex factory M-Bus secondary address: serial number, e.g. 28521234 M-Bus primary address: 000 M-Bus baud rate: 2400 S0 pulse output: 10 Impulse/ 20 ms Power meter manufacturer The 3-phase indirect M-Bus power meter meter is produced in Switzerland by EMU Electronic Ltd.More information: https://www.emuag.ch

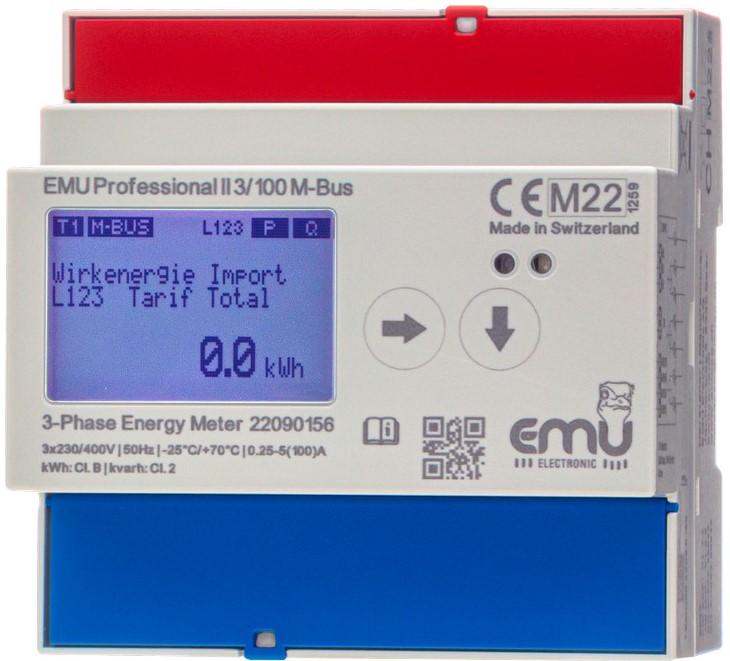

The 3-phase bidirectional power meter EMU Professional II 3/100 M-Bus for DIN rail mounting features a built-in wired M-Bus interface and is suitable for energy management as per ISO 50001 and energy cost billing. Features Bidirectional three-phase power meter with M-Bus interface wired M-Bus interface 3x230/400V Direct connection up to 100 A MID B+D, for billing purposes Accuracy class B (1%) M-Bus interface The built-in M-Bus interface is protected against dirt and manipulation and is designed according to EN13757-2, -3 (previously EN1434-3). The power meter EMU Professional II 3/100 M-Bus communicates via M-Bus at 300, 600, 1,200, 2,400, 4,800 and 9,600 baud. The M-Bus load of the EMU Professional II 3/100 M-Bus is only 1.5 mA, which corresponds to a standard load.M-Bus connection: The EMU Professional 3/100 M-Bus 2x2 M-Bus connection terminals for easy M-Bus looping. Power meter readings Active energy consumption (kWh) and supply (kWh) Reactive energy consumption (kvarh) and supply (kvarh) Active power (kw)  Reactive power (kvar)  Apparent power (kVA) Current (A) Frequency (Hz) Number of voltage failures LCD-Display Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.Display language e.g. english or german can be selected by the keys. Power meter configuration Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.The control keys are used to configure the M-Bus primary and secondary address, and the baud rate. M-Bus baud rate: Via keys or free EMU MB-Connect software M-Bus primary address: Via keys or free EMU MB-Connect software M-Bus secondary address: Via keys or free EMU MB-Connect software S0 pulse output The 3-phase power meter EMU Professional II 3/100 M-Bus features a configurable S0 pulse output for active or reactive energy Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000 Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms Power meter configuration ex factory M-Bus primary address: 000 M-Bus secondary address: serial number, e.g. 24501234 M-Bus baud rate: 2400 S0 pulse output: 1'000 Impulse/ 40 ms Manufacturer The 3-phase M-Bus power meter meter is produced in Switzerland by EMU Electronic Ltd.More information: https://www.emuag.ch

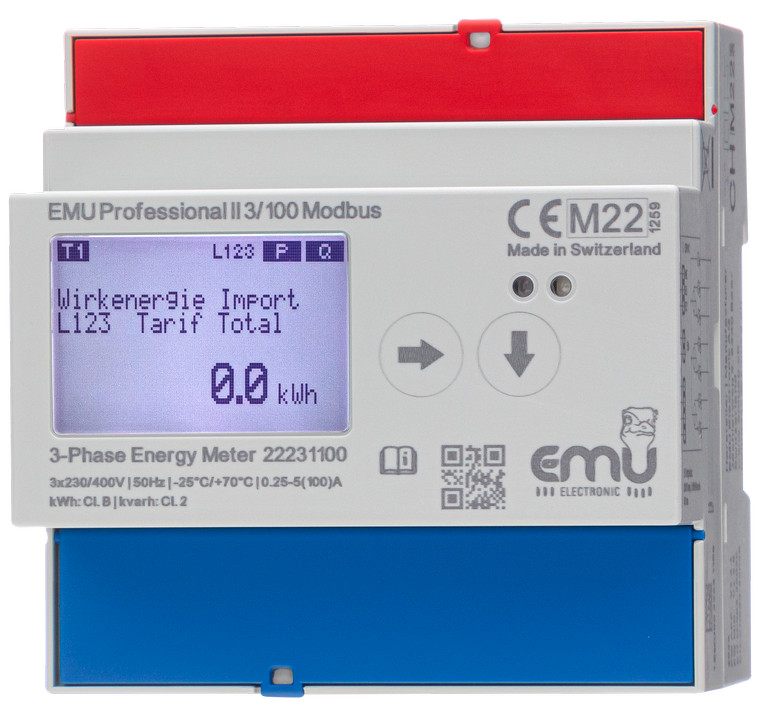

The 3-phase bidirectional power meter EMU Professional II 3/100 Modbus for DIN rail mounting features a built-in RS 485 Modbus RTU interface and is suitable for energy management as per ISO 50001 and energy cost billing. Features Bidirectional three-phase power meter with RS485 interface RS485 Modbus RTU interface 3x230/400V Direct connection up to 100 A MID B+D, for billing purposes Accuracy class B (1%) RS485 Modbus RTU interface The built-in RS 485 Modbus RTU interface is protected against dirt and manipulation.  Modbus power meter readings Active energy consumption (kWh) and supply (kWh) Reactive energy consumption (kvarh) and supply (kvarh) Active power (kw)  Reactive power (kvar)  Apparent power (kVA) Current (A) Frequency (Hz) Number of voltage failures LCD-Display Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.Display language e.g. english or german can be selected by the keys. Power meter configuration Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.The control buttons are used to configure the RS485 Modbs address and the baud rate. Modbus baud rate: Via keys or Modbus Modbus primary address: Via keys or Modbus Modbus address: Via keys or Modbus S0 pulse output The 3-phase power meter EMU Professional II 3/100 Modbus features a configurable S0 pulse output for active or reactive energy  Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000 Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms RS 485 power meter configuration ex factory Modbus address: 000 S0 pulse output: 1'000 Impulse/ 40 ms Manufacturer The 3-phase RS485 power meter meter is produced in Switzerland by EMU Electronic Ltd.More information: https://www.emuag.ch

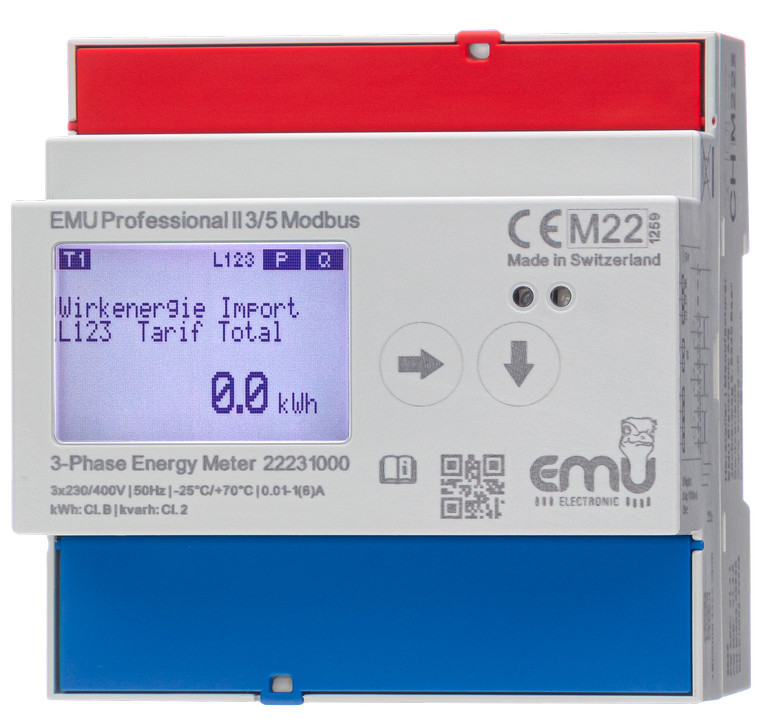

The 3-phase power meter EMU Professional II 3/5 Modbus for DIN rail mounting features a built-in RS485 Modbus RTU interface and is suitable for energy management as per ISO 50001 and energy cost billing. Features Bidirectional three-phase power meter with RS 485 interface interface RS 485 Modbus RTU 3x230/400V Indirect using /5A and /1A current transformers Current transformer ratio configurable several times using the service key MID B+D, for billing purposes Accuracy class B (1%) RS485 Modbus RTU interface The built-in RS 485 Modbus RTU interface is protected against dirt and manipulation.  Modbus power meter readings Active energy consumption (kWh) and supply (kWh) Reactive energy consumption (kWh) and supply (kWh) Active power (kw)  Reactive power (kvar)  Apparent power (kVA) Current (A) Frequency (Hz) Number of voltage failures Current transformer ratio LCD-Display Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.Display language e.g. english or german can be selected by the keys. Power meter configuration Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.The current transformer ratio (1 or 5 A transformer, up for up to 20000/5 or 4000/1 A) can be configurable several times.The control keys are used to configure the RS485 Modbs address and the baud rate. Modbus baud rate: Via keys or Modbus Modbus primary address: Via keys or Modbus Modbus address: Via keys or Modbus S0 pulse output The 3-phase indirect power meter EMU Professional II 3/5 Modbus features a configurable S0 pulse output for active or reactive energy  Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000 Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms Modbus power meter configuration ex factory Modbus address: 000 S0 pulse output: 10 Impulse/ 20 ms Modbus Power meter manufacturer The 3-phase modbus power meter meter is produced in Switzerland by EMU Electronic Ltd.More information: https://www.emuag.ch

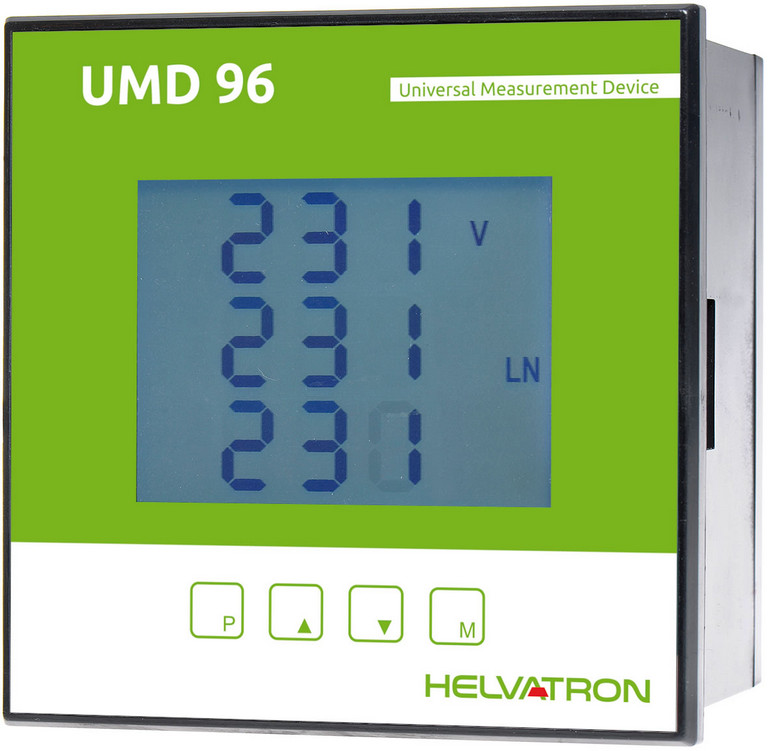

Helvatron 96x96 UMD 96 M-Bus panel meter

Helvatron 96x96 UMD 96 Modbus TCP panel meter

The 3-phase indirect power meter EMU Professional II 3/5 LoRa for DIN rail mounting features a built-in wireless LoRa interface. The EMU Professional II is suitable for energy management as per ISO 5000, submetering and billing. LoRa power meter features Bidirectional three-phase power meter with LoRa interface Wireless LoRa interface 3x230/400V Indirect using /5A and /1A current transformers Current transformer ratio configurable several times using the service key MID B+D, for billing purposes Accuracy class B (1%) LoRa interface To ensure a stable, high-performance connection to the LoRaGateway, the LoRa interface continuously adapts the optimal transmission and reception parameters. For easier integration of the electricity meter, the status of the LoRa network connection can be accessed on the display at any time. Frequency band EU 863-870MHz Type: Class C device Two-way communication. LoRa interface is always ready to receive (Class C). The LoRa interface has a signal strength of 14dbm.  Note:  When operating the LoRa power meter EMU Professional II 3/5 on a LoRa network which does not support Class C devices, the power meter EMU Professional II will work as a Class A device.  LoRa Decoder  On the TTN network, the EMU Professional II 3/5 LoRa is immediately available as a template. For integration in other systems, we offer the decoder in GITHUB. Link: GITHUB LoRa Decoder  Indirect LoRa power meter configuration ex factory Every LoRa electricity meter has the following factory configuration  JoinMode: OTAA DevEUI  (starting with 102CEF) Appkey AppEUI  (10 2C EF 00 00 00 00 00)  The DevEUI and the AppKey can be read on the display, the AppEUI is always 10 2C EF 00 00 00 00 00  LoRa power meter readings Active energy consumption (kWh) and supply (kWh) Reactive energy consumption (kWh) and supply (kWh) Active power (kw)  Reactive power (kvar)  Apparent power (kVA) Current (A) Frequency (Hz) Number of voltage failures Current transformer ratio LCD-Display Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.Display language e.g. english or german can be selected by the keys. Power meter configuration Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.The current transformer ratio (1 or 5 A transformer, up for up to 20000/5 or 4000/1 A) can be configurable several times.Using the control keys a new LoRa key can be generated or a re-join can be started. S0 pulse output The 3-phase indirect power meter EMU Professional II 3/5 LoRa features a configurable S0 pulse output for active or reactive energy  Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000 Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms LoRa power meter manufacturer The 3-phase LoRa power meter meter meter is produced in Switzerland by EMU Electronic Ltd.More information: https://www.emuag.ch

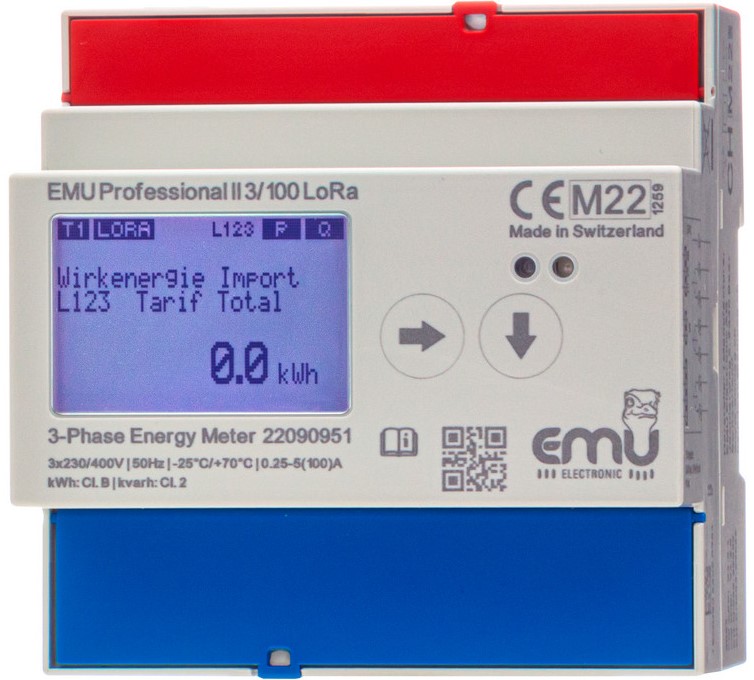

The 3-phase power meter EMU Professional II 3/100 LoRa for DIN rail mounting features a built-in LoRa interface. The power meter EMU Professional II is suitable for energy management as per ISO 5000, submetering and billing. LoRa power meter features Bidirectional three-phase power meter with LoRa interface Built in LoRa interface and antenna Wireless LoRa interface 3x230/400V Direct connection up to 100A MID B+D, for billing purposes Accuracy class B (1%) LoRa interface To ensure a stable, high-performance connection to the LoRaGateway, the LoRa interface continuously adapts the optimal transmission and reception parameters. For easier integration of the electricity meter, the status of the LoRa network connection can be accessed on the display at any time. Frequency band EU 863-870MHz Type: Class C device Two-way communication. LoRa interface is always ready to receive (Class C). The LoRa interface has a signal strength of 14dbm.  Note:  When operating the LoRa power meter EMU Professional II 3/100 on a LoRa network which does not support Class C devices, the power meter EMU Professional II will work as a Class A device.  LoRa Decoder  On the TTN network, the power meter EMU Professional II 3/100 LoRa is immediately available as a template. For easy integration in other systems, we offer the LoRa decoder in GITHUB. Link: GITHUB LoRa Decoder  LoRa power meter configuration ex factory Every LoRa electricity meter has the following factory configuration  JoinMode: OTAA DevEUI  (starting with 102CEF) Appkey AppEUI  (10 2C EF 00 00 00 00 00)  The DevEUI and the AppKey can be read on the display, the AppEUI is always 10 2C EF 00 00 00 00 00  LoRa power meter readings Active energy consumption (kWh) and supply (kWh) Reactive energy consumption (kvarh) and supply (kvarh) Active power (kw) Reactive power (kvar) Apparent power (kVA) Current (A) Frequency (Hz) Number of voltage failures LCD-Display Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.Display language e.g. english or german can be selected by the keys. Direct LoRa power meter configuration Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.Using the control buttons a new LoRa key can be generated or a re-join can be started. S0 pulse output The 3-phase power meter EMU Professional II 3/100 LoRa features a configurable S0 pulse output for active or reactive energy  Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000 Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms Power meter manufacturer The 3-phase power meter with LoRa interface is manufactured in Switzerland by EMU Electronic Ltd.More information: https://www.emuag.ch

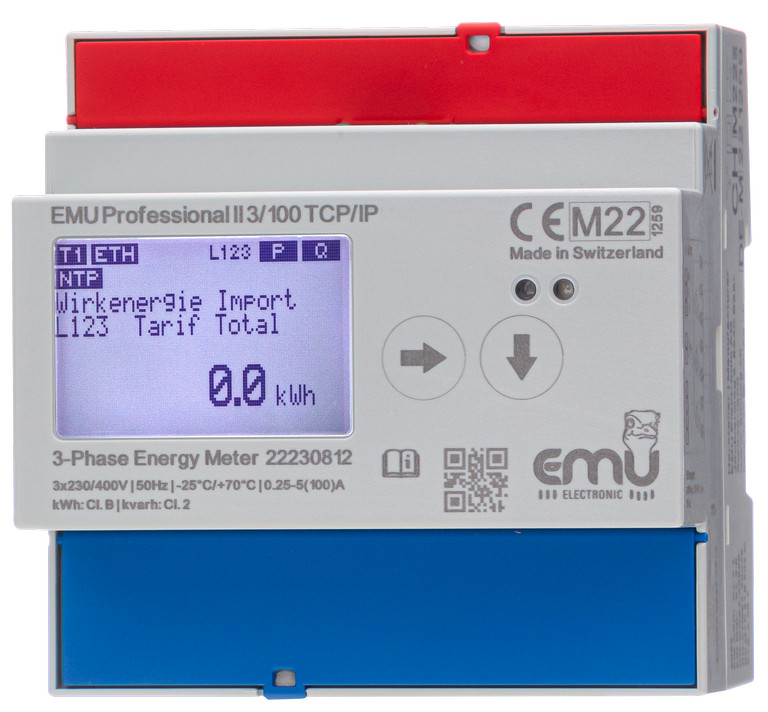

The 3-phase bidirectional power meter EMU Professional II 3/100 TCP/IP for DIN rail mounting is suitable for energy management as per ISO 50001 and energy cost billing.Built-in load profile memory with a memory depth of over 3 years at a 15-minute interval  Features Bidirectional three-phase power meter with LAN TCP/IP interface Remote reading via Modbus TCP and API Webserver access protection with password Logging of different measurement values and export to CSV or via API Memory depth of over 3 years at a 15-minute interval  3x230/400V Direct connection up to 100 A MID B+D, for billing purposes Accuracy class B (1%) TCP/IP interface The built-in LAN TCP/IP interface is protected against dirt and manipulation.You can analyse different measurement readings via your web browser and IP address in a LAN or WAN. Remote reading via Modbus TCP   HTTP-GET API   NTP time server Buffered clock with synchronisation DHCP or fixed IP Modbus TCPModbus TCP is similar to Modbus RTU, but TCP/IP packages are used to transfer data. TCP-Port 502 is reserved for Modbus TCP. Power meter readings Active energy consumption (kWh) and supply (kWh) Reactive energy consumption (kvarh) and supply (kvarh) Active power (kw)  Reactive power (kvar)  Apparent power (kVA) Current (A) Frequency (Hz) Number of voltage failures LCD-Display Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.Display language e.g. english or german can be selected by the keys. Power meter configuration Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.Network parameters are easy to configure via the website. S0 pulse output The 3-phase power meter EMU Professional II 3/100 TCP/IP features a configurable S0 pulse output for active or reactive energy  Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000 Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms Power meter configuration ex factory Netwok configuration: DHCP S0 pulse output: 1'000 Impulse/ 40 ms Manufacturer The 3-phase LAN power meter meter is produced in Switzerland by EMU Electronic Ltd.More information: https://www.emuag.ch

The 3-phase bidirectional power meter EMU Professional II 3/100 M-Bus for DIN rail mounting features a built-in wired M-Bus interface and is suitable for energy management as per ISO 50001 and energy cost billing.Logbook for events and configuration changes related to MID / PTB regulations and Built-in load profile memory with a memory depth of over 3 years at a 15-minute interval. Features Bidirectional three-phase power meter with M-Bus interface wired M-Bus interface Logbook for events and configuration changes Logging of different measurement values and export via M-Bus Memory depth of over 3 years at a 15-minute interval Buffered clock with synchronisation via M-Bus 3x230/400V Direct connection up to 100 A MID B+D, for billing purposes PTB-A 50.7 approval Accuracy class B (1%) M-Bus interface The built-in M-Bus interface is protected against dirt and manipulation and is designed according to EN13757-2, -3 (previously EN1434-3). The power meter EMU Professional II 3/100 M-Bus communicates via M-Bus at 300, 600, 1,200, 2,400, 4,800 and 9,600 baud. The M-Bus load of the EMU Professional II 3/100 M-Bus LP is only 1.5 mA, which corresponds to a standard load.M-Bus connection: The EMU Professional 3/100 M-Bus LP 2x2 M-Bus connection terminals for easy M-Bus looping. Power meter readings Active energy consumption (kWh) and supply (kWh) Reactive energy consumption (kvarh) and supply (kvarh) Active power (kw)  Reactive power (kvar)  Apparent power (kVA) Current (A) Frequency (Hz) Number of voltage failures LCD-Display Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.Display language e.g. english or german can be selected by the keys. Power meter configuration Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.The control keys are used to configure the M-Bus primary and secondary address, and the baud rate. M-Bus baud rate: Via keys or free EMU MB-Connect software M-Bus primary address: Via keys or free EMU MB-Connect software M-Bus secondary address: Via keys or free EMU MB-Connect software S0 pulse output The 3-phase power meter EMU Professional II 3/100 M-Bus features a configurable S0 pulse output for active or reactive energy  Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000 Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms Power meter configuration ex factory M-Bus primary address: 000 M-Bus secondary address: serial number, e.g. 24501234 M-Bus baud rate: 2400 S0 pulse output: 1'000 Impulse/ 40 ms Manufacturer The 3-phase M-Bus power meter meter is produced in Switzerland by EMU Electronic Ltd.More information: https://www.emuag.ch

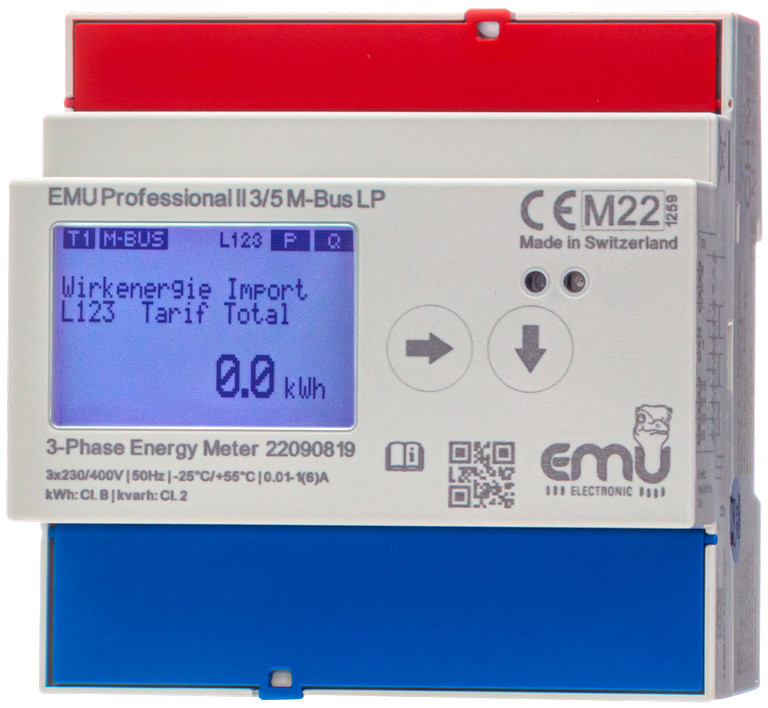

The 3-phase bidirectional power meter EMU Professional II 3/5 M-Bus for DIN rail mounting features a built-in wired M-Bus interface and is suitable for energy management as per ISO 50001 and energy cost billing.The EMU Professional II 3/5 M-Bus LP features a logbook for events and configuration changes (eg. CT ratio) related to MID / PTB regulations. Built-in load profile memory with a memory depth of over 3 years at a 15-minute interval. Historical data can be exported via M-Bus using e.g. the EMU M-Bus Center. Features Bidirectional three-phase power meter with M-Bus interface wired M-Bus interface Logbook for events and configuration changes Logging of different measurement values and export via M-Bus Memory depth of over 3 years at a 15-minute interval Buffered clock with synchronisation via M-Bus 3x230/400V Indirect using /5A and /1A current transformers Current transformer ratio configurable several times using the service key MID B+D, for billing purposes Accuracy class B (1%) M-Bus interface The built-in M-Bus interface is protected against dirt and manipulation and is designed according to EN13757-2, -3 (previously EN1434-3). The power meter EMU Professional II 3/5 M-Bus LP communicates via M-Bus at 300, 600, 1,200, 2,400, 4,800 and 9,600 baud. The M-Bus load of the EMU Professional II 3/5 M-Bus LP is only 1.5 mA, which corresponds to a standard load.M-Bus connection: The EMU Professional 3/5 M-Bus LP 2x2 M-Bus connection terminals for easy M-Bus looping. Power meter readings Active energy consumption (kWh) and supply (kWh) Reactive energy consumption (kWh) and supply (kWh) Active power (kw)  Reactive power (kvar)  Apparent power (kVA) Current (A) Frequency (Hz) Number of voltage failures Current transformer ratio LCD-Display Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.Display language e.g. english or german can be selected by the keys. Power meter configuration Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.The current transformer ratio (1 or 5 A transformer, up for up to 20000/5 or 4000/1 A) can be configurable several times.The control keys are used to configure the M-Bus primary and secondary address, and the baud rate. M-Bus baud rate: Via keys or free EMU MB-Connect software M-Bus primary address: Via keys or free EMU MB-Connect software M-Bus secondary address: Via keys or free EMU MB-Connect software S0 pulse output The 3-phase indirect power meter EMU Professional II 3/5 M-Bus LP features a configurable S0 pulse output for active or reactive energy  Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000 Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms Power meter configuration ex factory M-Bus secondary address: serial number, e.g. 23521234 M-Bus primary address: 000 M-Bus baud rate: 2400 S0 pulse output: 10 Impulse/ 20 ms Power meter manufacturer The 3-phase indirect M-Bus power meter meter is produced in Switzerland by EMU Electronic Ltd.More information: https://www.emuag.ch

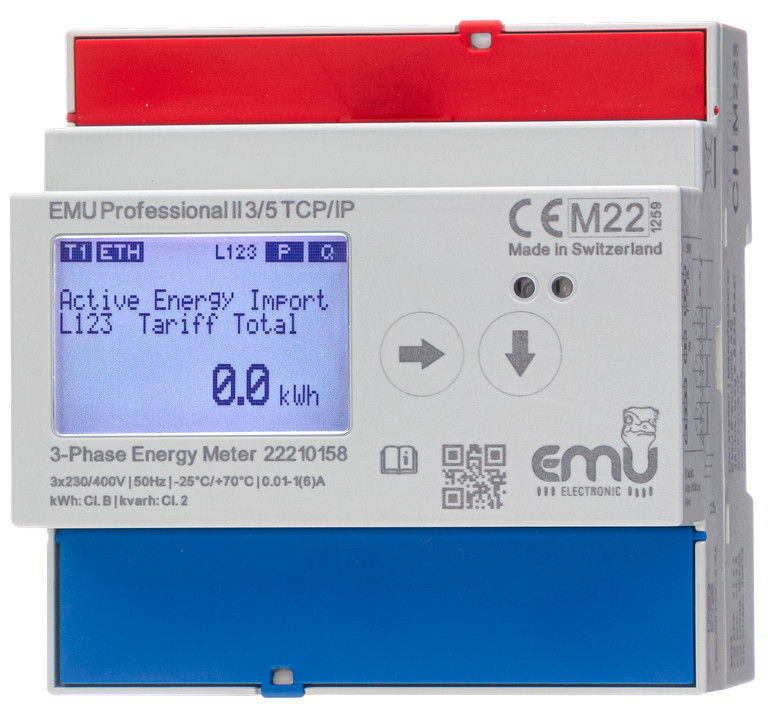

The 3-phase indirect power meter EMU Professional II 3/5 TCP/IP for DIN rail mounting features a built-in LAN interface with Modbus TCP communication and web-server. The indirect power meter is designed for energy management as per ISO 50001 and energy cost billing.Built-in load profile memory with a memory depth of over 3 years at a 15-minute interval. Features Bidirectional three-phase power meter with LAN TCP/IP interface Remote reading via Modbus TCP and API Webserver access protection with password Logging of different measurement values and export to CSV or via API Memory depth of over 3 years at a 15-minute interval  3x230/400V 1 or 5 A transformer connection for up to 20000/5 or 4000/1 A  MID B+D, for billing purposes Accuracy class B (1%) TCP/IP interface The built-in LAN TCP/IP interface is protected against dirt and manipulation.You can analyse different measurement readings via your web browser and IP address in a LAN or WAN. Remote reading via Modbus TCP   HTTP-GET API NTP time server Buffered clock with synchronisation DHCP or fixed IP Modbus TCPModbus TCP is similar to Modbus RTU, but TCP/IP packages are used to transfer data. TCP-Port 502 is reserved for Modbus TCP. Power meter readings Active energy consumption (kWh) and supply (kWh) Reactive energy consumption (kWh) and supply (kWh) Active power (kw)  Reactive power (kvar)  Apparent power (kVA) Current (A) Frequency (Hz) Number of voltage failures CT ratio LCD-Display Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.Display language e.g. english or german can be selected by the keys. Power meter configuration Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.The current transformer ratio (1 or 5 A transformer, up for up to 20000/5 or 4000/1 A) can be configurable several times.Network parameters are easy to configure via the website or buttons. S0 pulse output The 3-phase power meter EMU Professional II 3/5 TCP/IP features a configurable S0 pulse output for active or reactive energy  Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000 Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms Power meter configuration ex factory Netwok configuration: DHCP S0 pulse output: 10 Impulse/ 20 ms Manufacturer The 3-phase MID approved TCP/IP power meter meter is produced in Switzerland by EMU Electronic Ltd.More information: https://www.emuag.ch

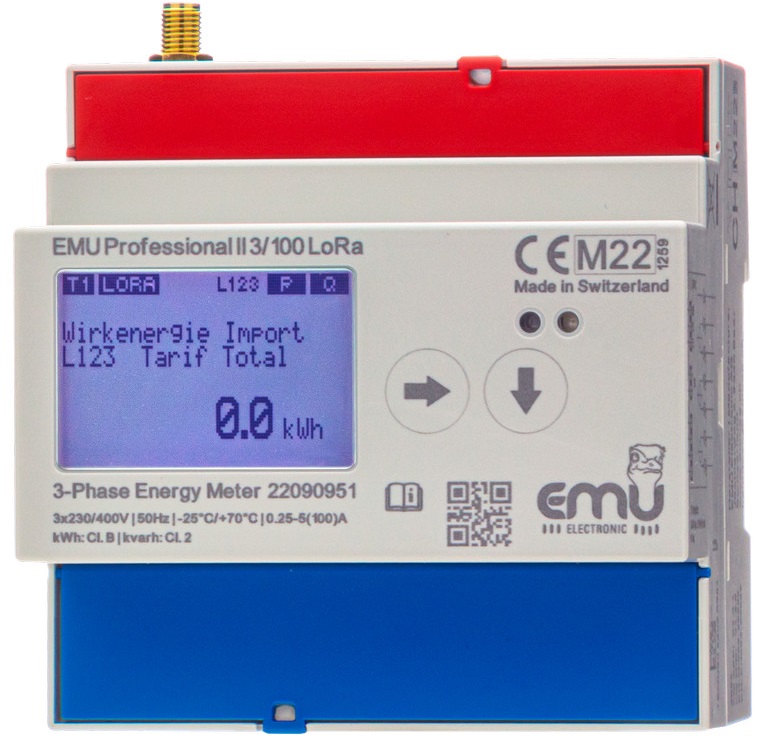

The 3-phase power meter EMU Professional II 3/100 LoRa ext. Ant. for DIN rail mounting features a built-in LoRa interface. The power meter EMU Professional II is suitable for energy management as per ISO 5000, submetering and billing.This version has an internal LoRa antenna and external SMA antenna connector.  Features Bidirectional three-phase power meter with LoRa interface Built in LoRa interface and external SMA LoRa antenna connector. Wireless LoRa interface 3x230/400V Direct connection up to 100A MID B+D, for billing purposes Accuracy class B (1%) LoRa interface To ensure a stable, high-performance connection to the LoRaGateway, the LoRa interface continuously adapts the optimal transmission and reception parameters. For easier integration of the electricity meter, the status of the LoRa network connection can be accessed on the display at any time. Frequency band EU 863-870MHz Type: Class C device Two-way communication. LoRa interface is always ready to receive (Class C). The LoRa interface has a signal strength of 14dbm.  Note:  When operating the LoRa power meter EMU Professional II 3/100 ext. Ant. on a LoRa network which does not support Class C devices, the power meter EMU Professional II will work as a Class A device.  LoRa Decoder  On the TTN network, the power meter EMU Professional II 3/100 LoRa is immediately available as a template. For easy integration in other systems, we offer the LoRa decoder in GITHUB. Link: GITHUB LoRa Decoder  LoRa power meter configuration ex factory Every LoRa electricity meter has the following factory configuration  JoinMode: OTAA DevEUI  (starting with 102CEF) Appkey AppEUI  (10 2C EF 00 00 00 00 00)  The DevEUI and the AppKey can be read on the display, the AppEUI is always 10 2C EF 00 00 00 00 00  LoRa power meter readings Active energy consumption (kWh) and supply (kWh) Reactive energy consumption (kvarh) and supply (kvarh) Active power (kw) Reactive power (kvar) Apparent power (kVA) Current (A) Frequency (Hz) Number of voltage failures LCD-Display Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.Display language e.g. english or german can be selected by the keys. Direct power meter configuration Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.Using the control buttons a new LoRa key can be generated or a re-join can be started. S0 pulse output The 3-phase power meter EMU Professional II 3/100 LoRa features a configurable S0 pulse output for active or reactive energy  Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000 Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms Power meter manufacturer The 3-phase power meter with LoRa interface is manufactured in Switzerland by EMU Electronic Ltd.More information: https://www.emuag.ch

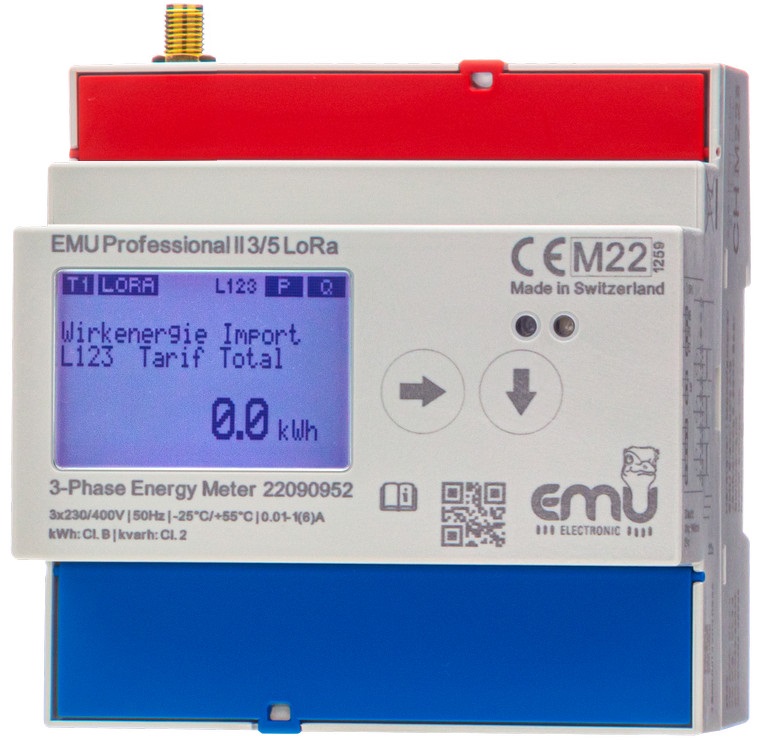

The 3-phase indirect power meter EMU Professional II 3/5 LoRa for DIN rail mounting features a built-in wireless LoRa interface. The EMU Professional II is suitable for energy management as per ISO 5000, submetering and billing.This version has an internal LoRa antenna and external SMA antenna connector.  Features Bidirectional three-phase power meter with LoRa interface Built in LoRa interface and external SMA LoRa antenna connector. Wireless LoRa interface 3x230/400V Indirect using /5A and /1A current transformers Current transformer ratio configurable several times using the service key MID B+D, for billing purposes Accuracy class B (1%) LoRa interface To ensure a stable, high-performance connection to the LoRaGateway, the LoRa interface continuously adapts the optimal transmission and reception parameters. For easier integration of the electricity meter, the status of the LoRa network connection can be accessed on the display at any time. Frequency band EU 863-870MHz Type: Class C device Two-way communication. LoRa interface is always ready to receive (Class C). The LoRa interface has a signal strength of 14dbm.  Note:  When operating the LoRa power meter EMU Professional II 3/5 on a LoRa network which does not support Class C devices, the power meter EMU Professional II will work as a Class A device.  LoRa Decoder  On the TTN network, the EMU Professional II 3/5 LoRa is immediately available as a template. For integration in other systems, we offer the decoder in GITHUB. Link: GITHUB LoRa Decoder  Indirect LoRa power meter configuration ex factory Every LoRa electricity meter has the following factory configuration  JoinMode: OTAA DevEUI  (starting with 102CEF) Appkey AppEUI  (10 2C EF 00 00 00 00 00)  The DevEUI and the AppKey can be read on the display, the AppEUI is always 10 2C EF 00 00 00 00 00  LoRa power meter readings Active energy consumption (kWh) and supply (kWh) Reactive energy consumption (kWh) and supply (kWh) Active power (kw)  Reactive power (kvar)  Apparent power (kVA) Current (A) Frequency (Hz) Number of voltage failures Current transformer ratio LCD-Display Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.Display language e.g. english or german can be selected by the keys. Power meter configuration Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.The current transformer ratio (1 or 5 A transformer, up for up to 20000/5 or 4000/1 A) can be configurable several times.Using the control keys a new LoRa key can be generated or a re-join can be started. S0 pulse output The 3-phase indirect power meter EMU Professional II 3/5 LoRa features a configurable S0 pulse output for active or reactive energy  Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000 Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms Power meter manufacturer The 3-phase indirect M-Bus power meter meter is produced in Switzerland by EMU Electronic Ltd.More information: https://www.emuag.ch

The 3-phase bidirectional power meter EMU Professional II 3/5 TCP/IP LP for DIN rail mounting features a built-in LAN interface with Modbus TCP communication and web-server. The indirect power meter is designed for energy management as per ISO 50001 and energy cost billing.Logbook for events and configuration changes related to MID / PTB regulations and Built-in load profile memory with a memory depth of over 3 years at a 15-minute interval. Features Bidirectional three-phase power meter with LAN TCP/IP interface Remote reading via Modbus TCP and API Webserver access protection with password Logbook for events and configuration changes related to weights and measures regulations  Logging of different measurement values and export to CSV or via API Memory depth of over 3 years at a 15-minute interval  3x230/400V 1 or 5 A transformer connection for up to 20000/5 or 4000/1 A  MID B+D, for billing purposes PTB-A 50.7 approval Accuracy class B (1%) TCP/IP interface The built-in LAN TCP/IP interface is protected against dirt and manipulation.You can analyse different measurement readings via your web browser and IP address in a LAN or WAN. Remote reading via Modbus TCP   HTTP-GET API NTP time server Buffered clock with synchronisation DHCP or fixed IP Modbus TCPModbus TCP is similar to Modbus RTU, but TCP/IP packages are used to transfer data. TCP-Port 502 is reserved for Modbus TCP. Power meter readings Active energy consumption (kWh) and supply (kWh) Reactive energy consumption (kWh) and supply (kWh) Active power (kw)  Reactive power (kvar)  Apparent power (kVA) Current (A) Frequency (Hz) Number of voltage failures LCD-Display Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.Display language e.g. english or german can be selected by the keys. Power meter configuration Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.The current transformer ratio (1 or 5 A transformer, up for up to 20000/5 or 4000/1 A) can be configurable several times.Network parameters are easy to configure via the website or buttons. S0 pulse output The 3-phase power meter EMU Professional II 3/5 TCP/IP LP features a configurable S0 pulse output for active or reactive energy  Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000 Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms Power meter configuration ex factory Netwok configuration: DHCP S0 pulse output: 10 Impulse/ 20 ms Manufacturer The 3-phase MID approved TCP/IP power meter meter is produced in Switzerland by EMU Electronic Ltd.More information: https://www.emuag.ch

The 3-phase bidirectional power meter EMU Professional II 3/100 TCP/IP LP for DIN rail mounting features a built-in wired M-Bus interface and is suitable for energy management as per ISO 50001 and energy cost billing.Logbook for events and configuration changes related to MID / PTB regulations and Built-in load profile memory with a memory depth of over 3 years at a 15-minute interval. Features Bidirectional three-phase power meter with LAN TCP/IP interface Remote reading via Modbus TCP and API Webserver access protection with password Logbook for events and configuration changes related to weights and measures regulations  Logging of different measurement values and export to CSV or via API Memory depth of over 3 years at a 15-minute interval  3x230/400V Direct connection up to 100 A MID B+D, for billing purposes PTB-A 50.7 approval Accuracy class B (1%) TCP/IP interface The built-in LAN TCP/IP interface is protected against dirt and manipulation.You can analyse different measurement readings via your web browser and IP address in a LAN or WAN. Remote reading via Modbus TCP   HTTP-GET API NTP time server Buffered clock with synchronisation DHCP or fixed IP Modbus TCPModbus TCP is similar to Modbus RTU, but TCP/IP packages are used to transfer data. TCP-Port 502 is reserved for Modbus TCP. Power meter readings Active energy consumption (kWh) and supply (kWh) Reactive energy consumption (kvarh) and supply (kvarh) Active power (kw)  Reactive power (kvar)  Apparent power (kVA) Current (A) Frequency (Hz) Number of voltage failures LCD-Display Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.Display language e.g. english or german can be selected by the keys. Power meter configuration Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.Network parameters are easy to configure via the website or keys. S0 pulse output The 3-phase power meter EMU Professional II 3/100 TCP/IP LP features a configurable S0 pulse output for active or reactive energy  Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000 Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms Power meter configuration ex factory Netwok configuration: DHCP S0 pulse output: 1'000 Impulse/ 40 ms Manufacturer The 3-phase M-Bus power meter meter is produced in Switzerland by EMU Electronic Ltd.More information: https://www.emuag.ch
