Energy Management
In production. Backlog
Joulio-Web Saas | EMU meter
€1.79*
Software License for the Web-based Energy Management Software Joulio-Web
With the Measuring Device License for Joulio-Web, you will receive a web-based energy management software that can be used for EMU electricity meters, Helvatron water meters, and Helvatron heat meters.For this item, you will need: 250,000.00 Joulio-Web SaaS | Basic Subscription
Advantages of the Software License for Joulio-Web:
Most favorable software license for EMU electricity meters
Most favorable software license for Helvatron water meters
Most favorable software license for Helvatron heat meters
Easy operation and quick setup
Optimize your energy consumption through analysis and reports
Suitable for EMU electricity meters, Helvatron water meters, and Helvatron heat meters
For each measuring device (EMU or Helvatron), you will need a separate software license for Joulio-Web.
EMU Electronic AG
In production. Backlog
Joulio-Web Saas | App Charts
€22.61*
The Joulio-Web energy management software is designed with a modular structure. Enhance your analysis with the available charting feature.This article requires: 250.000.00 Joulio-Web SaaS | Basic Subscription
EMU Electronic AG
In production. Backlog
Joulio-Web SaaS
€29.63*
Control your Energy Management more efficiently and faster with our web-based Energy Management Software Joulio-Web to ISO 50001 Standards. Our Joulio-Web offers a simple and intuitive user interface for capturing and managing energy consumption and production data. With the software, you can easily implement your energy management to ISO 50001, achieve energy savings, and reduce energy costs. Key features:
Unlimited number of measuring devices and sensors
Unlimited number of locations
Dashboard
Device management
Easy data import from M-Center (M-Bus, RS485, and Modbus TCP devices)
Charts (optional / App, Art. No. 250.001.00)
Possible data sources (non-exhaustive list)
M-Bus
LoRa
RS485
Modbus TCP
MQTT
CSV
License ModelThe licensing of Joulio-Web is structured as follows:You will need the following items:
250.000.00 Joulio-Web Basic Subscription
250.000.01 Joulio-Web EMU and Helvatron Meters
250.000.02 Joulio-Web External Meters (A meter is a measuring device with a meter reading, e.g. kWh, m3, km, pieces)
250.000.03 Joulio-Web Sensor (e.g. LoRa sensors, temperature, parking, humidity, light, snow amount, water level)
Additional Apps
250.001.00 Joulio-Web | Charts
Storage Requirements and Data Communication | Database ModelStandard Database15-minute measurements are kept for 31 days, then compressed to daily values and stored for 4 yearsM-Center can communicate data to Joulio-Web once a dayPro Database15-minute measurements are kept for 365 days, then compressed to daily values and stored for 4 yearsM-Center can communicate data to Joulio-Web once a dayHigh-Speed Database15-minute measurements are kept for 365 days, then compressed to 1-hour values and stored for 4 yearsM-Center can communicate data to Joulio-Web once per hour
Features and Requirements for ISO 50001
Continuous data evaluation
Visualization including individual charts
Automated reporting
Alerting
Integration into existing systems
Support & Update service
Billings for cost centers & apartments
Our web-based energy management software to ISO 50001 standards is easy to use and offers many useful functions such as:
Monitoring
Analysis
Comparison
Optimization
Reduce energy costs and achieve energy savings
Support:
Our support team is available to you via email and helpdesk tool. For telephone and online support (e.g., commissioning), appointments can be booked in advance. Upon request, we offer SLAs (Service Level Agreements).
Use our web-based energy management software to ISO 50001 standards to efficiently and quickly manage your energy management and reduce energy costs.
Contract duration: 12 months, notice period 3 months to the end of the calendar year
available from stock
EMU Professional II 3/5 M-Bus
The 3-phase bidirectional power meter EMU Professional II 3/5 M-Bus for DIN rail mounting is suitable for energy management as per ISO 50001 and energy cost billing.
Features
Bidirectional three-phase power meter with M-Bus interface
wired M-Bus interface
3x230/400V
Indirect using /5A and /1A current transformers
Current transformer ratio configurable several times using the service key
MID B+D, for billing purposes
Accuracy class B (1%)
M-Bus interface
The built-in M-Bus interface is protected against dirt and manipulation and is designed according to EN13757-2, -3 (previously EN1434-3). The power meter EMU Professional II 3/5 M-Bus communicates via M-Bus at 300, 600, 1,200, 2,400, 4,800 and 9,600 baud. The M-Bus load of the EMU Professional II 3/5 M-Bus is only 1.5 mA, which corresponds to a standard load.M-Bus connection: The EMU Professional 3/5 M-Bus 2x2 M-Bus connection terminals for easy M-Bus looping.
Power meter readings
Active energy consumption (kWh) and supply (kWh)
Reactive energy consumption (kWh) and supply (kWh)
Active power (kw)
Reactive power (kvar)
Apparent power (kVA)
Current (A)
Frequency (Hz)
Number of voltage failures
Current transformer ratio
LCD-Display
Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.Display language e.g. english or german can be selected by the keys.
Power meter configuration
Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.The current transformer ratio (1 or 5 A transformer, up for up to 20000/5 or 4000/1 A) can be configurable several times.The control keys are used to configure the M-Bus primary and secondary address, and the baud rate.
M-Bus baud rate: Via keys or free EMU MB-Connect software
M-Bus primary address: Via keys or free EMU MB-Connect software
M-Bus secondary address: Via keys or free EMU MB-Connect software
S0 pulse output
The 3-phase indirect power meter EMU Professional II 3/5 M-Bus features a configurable S0 pulse output for active or reactive energy
Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000
Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms
Indirect power meter configuration ex factory
M-Bus secondary address: serial number, e.g. 28521234
M-Bus primary address: 000
M-Bus baud rate: 2400
S0 pulse output: 10 Impulse/ 20 ms
Power meter manufacturer
The 3-phase indirect M-Bus power meter meter is produced in Switzerland by EMU Electronic Ltd.More information: https://www.emuag.ch
available from stock
EMU Professional II 3/100 M-Bus
The 3-phase bidirectional power meter EMU Professional II 3/100 M-Bus for DIN rail mounting features a built-in wired M-Bus interface and is suitable for energy management as per ISO 50001 and energy cost billing.
Features
Bidirectional three-phase power meter with M-Bus interface
wired M-Bus interface
3x230/400V
Direct connection up to 100 A
MID B+D, for billing purposes
Accuracy class B (1%)
M-Bus interface
The built-in M-Bus interface is protected against dirt and manipulation and is designed according to EN13757-2, -3 (previously EN1434-3). The power meter EMU Professional II 3/100 M-Bus communicates via M-Bus at 300, 600, 1,200, 2,400, 4,800 and 9,600 baud. The M-Bus load of the EMU Professional II 3/100 M-Bus is only 1.5 mA, which corresponds to a standard load.M-Bus connection: The EMU Professional 3/100 M-Bus 2x2 M-Bus connection terminals for easy M-Bus looping.
Power meter readings
Active energy consumption (kWh) and supply (kWh)
Reactive energy consumption (kvarh) and supply (kvarh)
Active power (kw)
Reactive power (kvar)
Apparent power (kVA)
Current (A)
Frequency (Hz)
Number of voltage failures
LCD-Display
Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.Display language e.g. english or german can be selected by the keys.
Power meter configuration
Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.The control keys are used to configure the M-Bus primary and secondary address, and the baud rate.
M-Bus baud rate: Via keys or free EMU MB-Connect software
M-Bus primary address: Via keys or free EMU MB-Connect software
M-Bus secondary address: Via keys or free EMU MB-Connect software
S0 pulse output
The 3-phase power meter EMU Professional II 3/100 M-Bus features a configurable S0 pulse output for active or reactive energy
Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000
Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms
Power meter configuration ex factory
M-Bus primary address: 000
M-Bus secondary address: serial number, e.g. 24501234
M-Bus baud rate: 2400
S0 pulse output: 1'000 Impulse/ 40 ms
Manufacturer
The 3-phase M-Bus power meter meter is produced in Switzerland by EMU Electronic Ltd.More information: https://www.emuag.ch
available from stock
M-Center License upgrade 20 to 60 M-Bus devices
Software license extension for the EMU M-Center.
M-Bus license extension | 20 to 60 From 20 M-Bus devices to a maximum of 60
available from stock
EMU Professional II 3/5 LoRa
The 3-phase indirect power meter EMU Professional II 3/5 LoRa for DIN rail mounting features a built-in wireless LoRa interface. The EMU Professional II is suitable for energy management as per ISO 5000, submetering and billing.
LoRa power meter features
Bidirectional three-phase power meter with LoRa interface
Wireless LoRa interface
3x230/400V
Indirect using /5A and /1A current transformers
Current transformer ratio configurable several times using the service key
MID B+D, for billing purposes
Accuracy class B (1%)
LoRa interface
To ensure a stable, high-performance connection to the LoRaGateway, the LoRa interface continuously adapts the optimal transmission and reception parameters. For easier integration of the electricity meter, the status of the LoRa network connection can be accessed on the display at any time.
Frequency band EU 863-870MHz
Type: Class C device
Two-way communication.
LoRa interface is always ready to receive (Class C).
The LoRa interface has a signal strength of 14dbm.
Note: When operating the LoRa power meter EMU Professional II 3/5 on a LoRa network which does not support Class C devices, the power meter EMU Professional II will work as a Class A device.
LoRa Decoder
On the TTN network, the EMU Professional II 3/5 LoRa is immediately available as a template. For integration in other systems, we offer the decoder in GITHUB. Link: GITHUB LoRa Decoder
Indirect LoRa power meter configuration ex factory
Every LoRa electricity meter has the following factory configuration
JoinMode: OTAA
DevEUI (starting with 102CEF)
Appkey
AppEUI (10 2C EF 00 00 00 00 00)
The DevEUI and the AppKey can be read on the display, the AppEUI is always 10 2C EF 00 00 00 00 00
LoRa power meter readings
Active energy consumption (kWh) and supply (kWh)
Reactive energy consumption (kWh) and supply (kWh)
Active power (kw)
Reactive power (kvar)
Apparent power (kVA)
Current (A)
Frequency (Hz)
Number of voltage failures
Current transformer ratio
LCD-Display
Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.Display language e.g. english or german can be selected by the keys.
Power meter configuration
Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.The current transformer ratio (1 or 5 A transformer, up for up to 20000/5 or 4000/1 A) can be configurable several times.Using the control keys a new LoRa key can be generated or a re-join can be started.
S0 pulse output
The 3-phase indirect power meter EMU Professional II 3/5 LoRa features a configurable S0 pulse output for active or reactive energy
Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000
Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms
LoRa power meter manufacturer
The 3-phase LoRa power meter meter meter is produced in Switzerland by EMU Electronic Ltd.More information: https://www.emuag.ch
available from stock
EMU Professional II 3/100 LoRa
The 3-phase power meter EMU Professional II 3/100 LoRa for DIN rail mounting features a built-in LoRa interface. The power meter EMU Professional II is suitable for energy management as per ISO 5000, submetering and billing.
LoRa power meter features
Bidirectional three-phase power meter with LoRa interface
Built in LoRa interface and antenna
Wireless LoRa interface
3x230/400V
Direct connection up to 100A
MID B+D, for billing purposes
Accuracy class B (1%)
LoRa interface
To ensure a stable, high-performance connection to the LoRaGateway, the LoRa interface continuously adapts the optimal transmission and reception parameters. For easier integration of the electricity meter, the status of the LoRa network connection can be accessed on the display at any time.
Frequency band EU 863-870MHz
Type: Class C device
Two-way communication.
LoRa interface is always ready to receive (Class C).
The LoRa interface has a signal strength of 14dbm.
Note: When operating the LoRa power meter EMU Professional II 3/100 on a LoRa network which does not support Class C devices, the power meter EMU Professional II will work as a Class A device.
LoRa Decoder
On the TTN network, the power meter EMU Professional II 3/100 LoRa is immediately available as a template. For easy integration in other systems, we offer the LoRa decoder in GITHUB. Link: GITHUB LoRa Decoder
LoRa power meter configuration ex factory
Every LoRa electricity meter has the following factory configuration
JoinMode: OTAA
DevEUI (starting with 102CEF)
Appkey
AppEUI (10 2C EF 00 00 00 00 00)
The DevEUI and the AppKey can be read on the display, the AppEUI is always 10 2C EF 00 00 00 00 00
LoRa power meter readings
Active energy consumption (kWh) and supply (kWh)
Reactive energy consumption (kvarh) and supply (kvarh)
Active power (kw)
Reactive power (kvar)
Apparent power (kVA)
Current (A)
Frequency (Hz)
Number of voltage failures
LCD-Display
Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.Display language e.g. english or german can be selected by the keys.
Direct LoRa power meter configuration
Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.Using the control buttons a new LoRa key can be generated or a re-join can be started.
S0 pulse output
The 3-phase power meter EMU Professional II 3/100 LoRa features a configurable S0 pulse output for active or reactive energy
Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000
Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms
Power meter manufacturer
The 3-phase power meter with LoRa interface is manufactured in Switzerland by EMU Electronic Ltd.More information: https://www.emuag.ch
available from stock
M-Center License upgrade 20 to 120 M-Bus devices
Software license extension for the EMU M-Center.
M-Bus license extension | 20 to 120 From 20 M-Bus devices to a maximum of 120
available from stock
EMU Professional II 3/100 LoRa ext. Ant
The 3-phase power meter EMU Professional II 3/100 LoRa ext. Ant. for DIN rail mounting features a built-in LoRa interface. The power meter EMU Professional II is suitable for energy management as per ISO 5000, submetering and billing.This version has an internal LoRa antenna and external SMA antenna connector.
Features
Bidirectional three-phase power meter with LoRa interface
Built in LoRa interface and external SMA LoRa antenna connector.
Wireless LoRa interface
3x230/400V
Direct connection up to 100A
MID B+D, for billing purposes
Accuracy class B (1%)
LoRa interface
To ensure a stable, high-performance connection to the LoRaGateway, the LoRa interface continuously adapts the optimal transmission and reception parameters. For easier integration of the electricity meter, the status of the LoRa network connection can be accessed on the display at any time.
Frequency band EU 863-870MHz
Type: Class C device
Two-way communication.
LoRa interface is always ready to receive (Class C).
The LoRa interface has a signal strength of 14dbm.
Note: When operating the LoRa power meter EMU Professional II 3/100 ext. Ant. on a LoRa network which does not support Class C devices, the power meter EMU Professional II will work as a Class A device.
LoRa Decoder
On the TTN network, the power meter EMU Professional II 3/100 LoRa is immediately available as a template. For easy integration in other systems, we offer the LoRa decoder in GITHUB. Link: GITHUB LoRa Decoder
LoRa power meter configuration ex factory
Every LoRa electricity meter has the following factory configuration
JoinMode: OTAA
DevEUI (starting with 102CEF)
Appkey
AppEUI (10 2C EF 00 00 00 00 00)
The DevEUI and the AppKey can be read on the display, the AppEUI is always 10 2C EF 00 00 00 00 00
LoRa power meter readings
Active energy consumption (kWh) and supply (kWh)
Reactive energy consumption (kvarh) and supply (kvarh)
Active power (kw)
Reactive power (kvar)
Apparent power (kVA)
Current (A)
Frequency (Hz)
Number of voltage failures
LCD-Display
Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.Display language e.g. english or german can be selected by the keys.
Direct power meter configuration
Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.Using the control buttons a new LoRa key can be generated or a re-join can be started.
S0 pulse output
The 3-phase power meter EMU Professional II 3/100 LoRa features a configurable S0 pulse output for active or reactive energy
Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000
Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms
Power meter manufacturer
The 3-phase power meter with LoRa interface is manufactured in Switzerland by EMU Electronic Ltd.More information: https://www.emuag.ch
available from stock
EMU Professional II 3/5 LoRa ext. Ant.
The 3-phase indirect power meter EMU Professional II 3/5 LoRa for DIN rail mounting features a built-in wireless LoRa interface. The EMU Professional II is suitable for energy management as per ISO 5000, submetering and billing.This version has an internal LoRa antenna and external SMA antenna connector.
Features
Bidirectional three-phase power meter with LoRa interface
Built in LoRa interface and external SMA LoRa antenna connector.
Wireless LoRa interface
3x230/400V
Indirect using /5A and /1A current transformers
Current transformer ratio configurable several times using the service key
MID B+D, for billing purposes
Accuracy class B (1%)
LoRa interface
To ensure a stable, high-performance connection to the LoRaGateway, the LoRa interface continuously adapts the optimal transmission and reception parameters. For easier integration of the electricity meter, the status of the LoRa network connection can be accessed on the display at any time.
Frequency band EU 863-870MHz
Type: Class C device
Two-way communication.
LoRa interface is always ready to receive (Class C).
The LoRa interface has a signal strength of 14dbm.
Note: When operating the LoRa power meter EMU Professional II 3/5 on a LoRa network which does not support Class C devices, the power meter EMU Professional II will work as a Class A device.
LoRa Decoder
On the TTN network, the EMU Professional II 3/5 LoRa is immediately available as a template. For integration in other systems, we offer the decoder in GITHUB. Link: GITHUB LoRa Decoder
Indirect LoRa power meter configuration ex factory
Every LoRa electricity meter has the following factory configuration
JoinMode: OTAA
DevEUI (starting with 102CEF)
Appkey
AppEUI (10 2C EF 00 00 00 00 00)
The DevEUI and the AppKey can be read on the display, the AppEUI is always 10 2C EF 00 00 00 00 00
LoRa power meter readings
Active energy consumption (kWh) and supply (kWh)
Reactive energy consumption (kWh) and supply (kWh)
Active power (kw)
Reactive power (kvar)
Apparent power (kVA)
Current (A)
Frequency (Hz)
Number of voltage failures
Current transformer ratio
LCD-Display
Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.Display language e.g. english or german can be selected by the keys.
Power meter configuration
Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.The current transformer ratio (1 or 5 A transformer, up for up to 20000/5 or 4000/1 A) can be configurable several times.Using the control keys a new LoRa key can be generated or a re-join can be started.
S0 pulse output
The 3-phase indirect power meter EMU Professional II 3/5 LoRa features a configurable S0 pulse output for active or reactive energy
Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000
Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms
Power meter manufacturer
The 3-phase indirect M-Bus power meter meter is produced in Switzerland by EMU Electronic Ltd.More information: https://www.emuag.ch
available from stock
M-Center License upgrade 20 to 250 M-Bus devices
Software license extension for the EMU M-Center.
M-Bus license extension | 20 to 250 From 20 M-Bus devices to a maximum of 250
available from stock
EMU M-Center
€827.05*
The EMU M-Center has an integrated high performance M-Bus level converter, which allows a quick configuration and commissioning.The automated reading of up to 250 M-Bus meters guarantees an error-free and continuous data acquisition for later analysis and billing according to ISO 50001.Energy consumption becomes transparent and potential savings are identified.
Hardware features
Integrated M-Bus level converter for up to 250 M-Bus slaves | Ex Factory license for 20 M-Bus meters active
2x RS485 interface for Modbus RTU readout (license optional)
2x RJ45 interface (1x for LAN connection and 1x service port)
8x Flex I/O's
Integrated SIM card LTE modem
USB interface
230V power supply
Integration into existing systems:
BACnet IP gateway function (option)
OPC UA gateway function (option)
MQTT (option)
Modbus TCP (option)
Firmware and software functions
Connection to Joulio-Web Device Management | Digital Twin and secure firmware update
Data acquisition from M-Bus, Modbus RTU and Modbus TCP devices
Suitable for heat, water, gas and electric meters with M-Bus
System connection via optional MQTT, OPC UA and BACnet IP license
Professional data processing Firmware update & backup via web interface Data recording and export for analysis
Energy consumption becomes transparent for targeted measures
Suitable for energy data management according to ISO 50001
Features and requirements according to ISO 50001
Automated reporting
Continuous data evaluation
Visualization incl. individual charts
Integration into existing systems
Alerting
Support & Update Service
Configuration
The complete configuration of the M-Center is done via an appealing, simple user interface, which can be done with any common web browser (HTML 5).
VisualizationFor visualization of energy consumption and instantaneous measured values we recommend the energy management software Joulio-Web.
Commissioning
Automated meter search
DHCP
RJ45 service port
Energy Management in EMU Metering Online Store
Would you like an effortless overview of your energy consumption and save energy sustainably? With the help of modern ISO 50001-certified system technology, energy data can be clearly collected and read out, while the energy efficiency can be improved. EMU Metering offers a variety of options to take your energy management to the next level and the cutting edge of technology. A fast and continuous transmission of usage data optimises monitoring and serves the successful adjustment of energy consumption.
With suitable system technology, which is eligible for BAFA funding, the amount of energy consumed by devices or activities can be quickly determined. This way, conclusions can be drawn effectively and worthwhile measures can be taken to prevent high levels of energy consumption and costs. Mobilise the benefits of technological applications for accounting and optimised energy controlling. EMU Metering’s online store offers various applications related to systems technology for the efficient evaluation of energy consumption measurements.
Systematically capturing energy data in real time - but what for?
Even if digital MID calibrated energy meters are able to represent consumption very accurately, the manual collection and evaluation of these data is laborious. Technology helps to present these data transparently, quickly, and clearly. The matching system technology continuously processes data, which makes working significantly easier. You do not have to spend time directly next to the meter to receive a reliable picture.
Coupled with the consumption meter, you receive a precise visualisation - continuously and clearly. You are able to keep track of your energy data for analysis, accounting in the future (e.g. utilities for rental units), or third party delineation. Through systematic energy data collection, energy consumption is clearly illustrated and savings potentials are uncovered. This benefits controlling as well as the environment. In this way, digital solutions for the improvement of energy efficiency also enable forecasting of future energy consumption.
Choose the best ISO-50001 energy management solution for your requirements
How do you find out which system is best suited for the digital processing of your energy data? For this purpose, the interface of your energy meter, as well as your individual requirements must be considered. The meter interfaces (e.g. M-Bus, LoRa, or TCP/IP) and the software solution must fit together. A wide range of energy meters can be found in the EMU online store.
Further to this, additional requirements can be placed on collection systems. Data collection can, for example, be completed by a large number of meters. Would you like to optimise the energy consumption of a household or company in a scalable way and across sites? The decision can be additionally influenced by the conditions for reading out meters remotely. The equipment and form of representation of the collected data also vary by system. Here, the question of which collected data you would like to access arises.
At EMU Metering, you can find a wide selection of ISO 50001-certified solutions which are eligible for BAFA funding and serve the visualisation, assessment, and documentation of your usage data - and that meet your requirements!
- Energy management software “Joulio-Web” is suitable and certified for usage optimisation according to ISO 50001. The energy management software serves the systematic collection of the consumption data for improving energy efficiency. Services for the start-up, updating, and staggered additional licenses can be additionally selected for up to 50 meters. With the “Joulio-Web” software, you can bring your energy management to a new level.
- EMU M-Bus system technology can be used for all heat, water, gas, and electricity meters with an M-Bus interface. Depending on the requirements and model, up to 250 M-Bus meters can be read out. The professional data processing facilitates quick analysis and evaluation of usage data. The technology is suitable for energy management as per ISO 50001. Configuration and remote readouts are possible via any common web browser.
- A LoRa server can be used for the additional connection of sensors in the energy management software “Joulio-Web.” Depending on the installation situation of the electricity meters, indoor and outdoor gateways are used for the continuous data collection related to energy consumption. LoRa delivers perfectly adjusted characteristics for wireless data collection - in any environment.

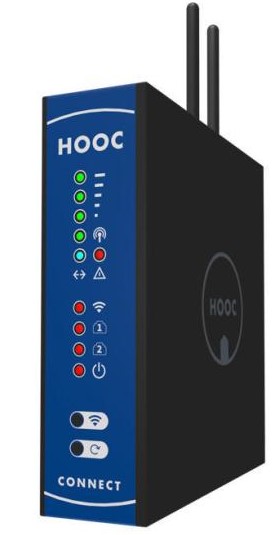

- HOOC VPN-Gateway Connect M LT S is particularly suited for remote servicing and mobile access to data collection. It offers 4/3G, WAN, WLAN and LAN interfaces for remote access to energy usage data. Access is provided via a secured end-to-end VPN tunnel. In addition, it facilitates the simple collection of systems and access authorisations.
EMU system technology for more sustainability and cost savings
Contribute to efficient energy consumption with EMU Metering’s products by effortlessly recognising potential savings and lowering your energy costs. Benefit from our experience and know-how. Please feel free to contact us with any questions. Contact us - for yourself and the environment.
