Product information "EMU Professional II 3/100 M-Bus LP"

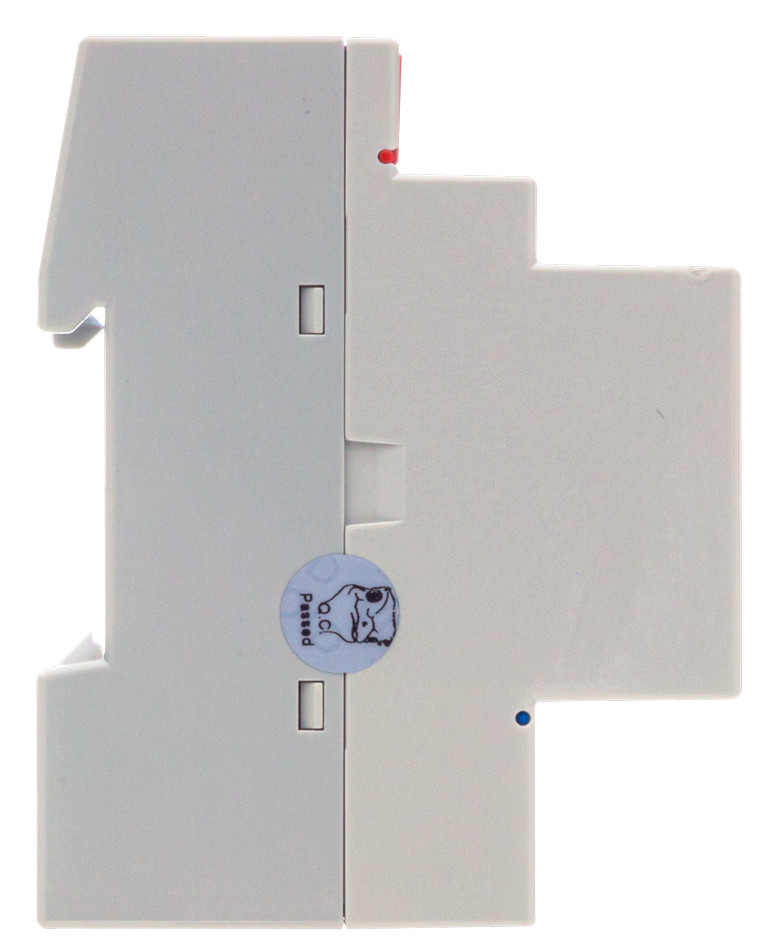

The 3-phase bidirectional power meter EMU Professional II 3/100 M-Bushttps://www.emu-metering.com/cogi-glossary/hover/00b544a8738c49b5b375ace4aa26b43e for DIN rail mounting features a built-in wired M-Bushttps://www.emu-metering.com/cogi-glossary/hover/00b544a8738c49b5b375ace4aa26b43e interface and is suitable for energy management as per ISO 50001 and energy cost billing.

Logbook for events and configuration changes related to MID / PTB regulations and Built-in load profile memory with a memory depth of over 3 years at a 15-minute interval.

Features

Bidirectional three-phase power meter with M-Bushttps://www.emu-metering.com/cogi-glossary/hover/00b544a8738c49b5b375ace4aa26b43e interface
wired M-Bushttps://www.emu-metering.com/cogi-glossary/hover/00b544a8738c49b5b375ace4aa26b43e interface
Logbook for events and configuration changes
Logging of different measurement values and export via M-Bushttps://www.emu-metering.com/cogi-glossary/hover/00b544a8738c49b5b375ace4aa26b43e
Memory depth of over 3 years at a 15-minute interval
Buffered clock with synchronisation via M-Bushttps://www.emu-metering.com/cogi-glossary/hover/00b544a8738c49b5b375ace4aa26b43e
3x230/400V
Direct connection up to 100 A
MID B+D, for billing purposes
PTB-A 50.7 approval
Accuracy class B (1%)

M-Bushttps://www.emu-metering.com/cogi-glossary/hover/00b544a8738c49b5b375ace4aa26b43e interface

Power meter readings

Active energy consumption (kWh) and supply (kWh)
Reactive energy consumption (kvarh) and supply (kvarh)
Active power (kw)
Reactive power (kvar)
Apparent power (kVA)
Current (A)
Frequency (Hz)
Number of voltage failures

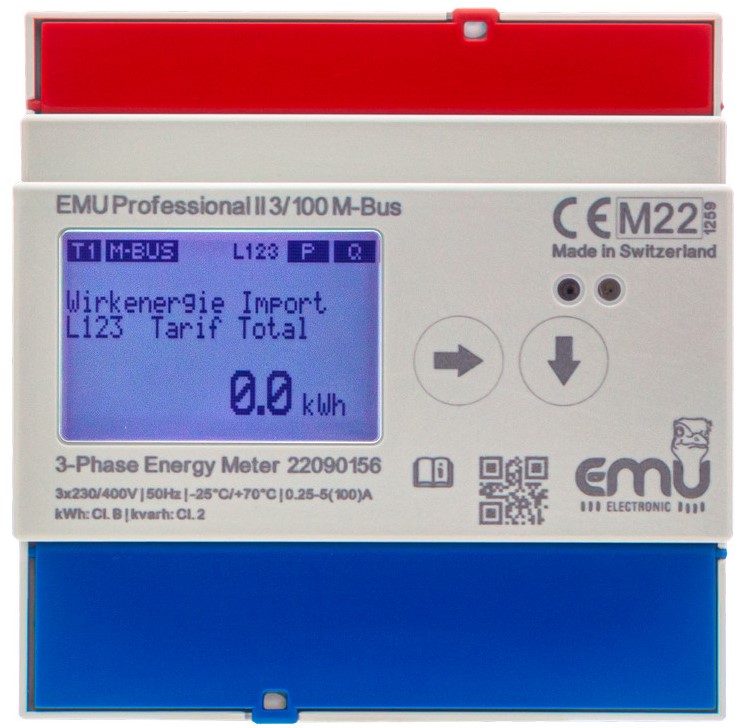

LCD-Display

Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.
Display language e.g. english or german can be selected by the keys.

Power meter configuration

Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.
The control keys are used to configure the M-Bushttps://www.emu-metering.com/cogi-glossary/hover/00b544a8738c49b5b375ace4aa26b43e primary and secondary address, and the baud rate.

M-Bushttps://www.emu-metering.com/cogi-glossary/hover/00b544a8738c49b5b375ace4aa26b43e baud rate: Via keys or free EMU MB-Connect software
M-Bushttps://www.emu-metering.com/cogi-glossary/hover/00b544a8738c49b5b375ace4aa26b43e primary address: Via keys or free EMU MB-Connect software
M-Bushttps://www.emu-metering.com/cogi-glossary/hover/00b544a8738c49b5b375ace4aa26b43e secondary address: Via keys or free EMU MB-Connect software

S0 pulse output

The 3-phase power meter EMU Professional II 3/100 M-Bushttps://www.emu-metering.com/cogi-glossary/hover/00b544a8738c49b5b375ace4aa26b43e features a configurable S0 pulse output for active or reactive energy

Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000
Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms

Power meter configuration ex factory

M-Bushttps://www.emu-metering.com/cogi-glossary/hover/00b544a8738c49b5b375ace4aa26b43e primary address: 000
M-Bushttps://www.emu-metering.com/cogi-glossary/hover/00b544a8738c49b5b375ace4aa26b43e secondary address: serial number, e.g. 24501234
M-Bushttps://www.emu-metering.com/cogi-glossary/hover/00b544a8738c49b5b375ace4aa26b43e baud rate: 2400
S0 pulse output: 1'000 Impulse/ 40 ms

Manufacturer

The 3-phase M-Bushttps://www.emu-metering.com/cogi-glossary/hover/00b544a8738c49b5b375ace4aa26b43e power meter meter is produced in Switzerland by EMU Electronic Ltd.
