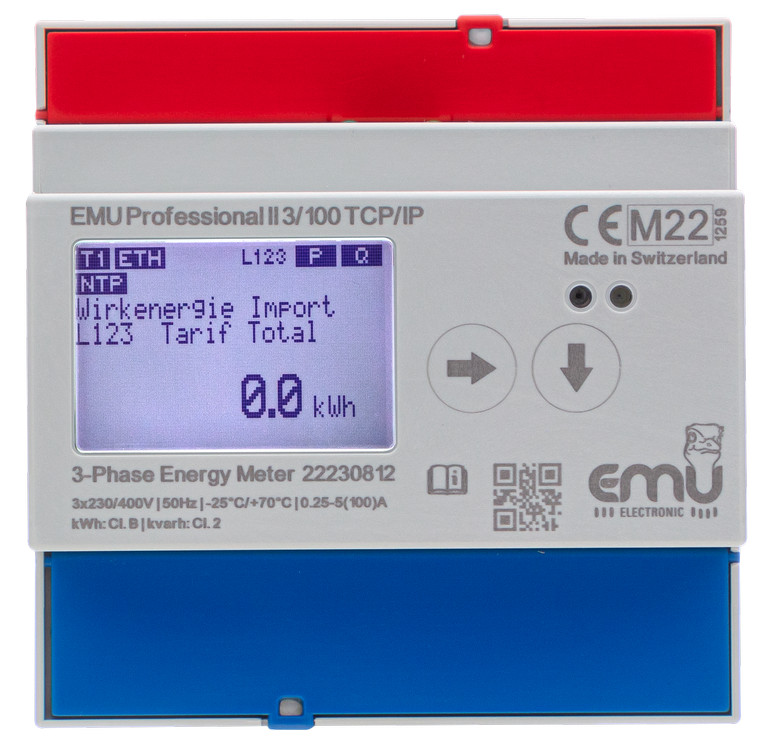

EMU Professional II 3/100 TCP/IP
The 3-phase bidirectional power meter EMU Professional II 3/100 TCP/IP for DIN rail mounting is suitable for energy management as per ISO 50001 and energy cost billing.
Built-in load profile memory with a memory depth of over 3 years at a 15-minute interval
Features
- Bidirectional three-phase power meter with LAN TCP/IP interface
- Remote reading via Modbus TCP and API
- Webserver access protection with password
- Logging of different measurement values and export to CSV or via API
- Memory depth of over 3 years at a 15-minute interval
- 3x230/400V
- Direct connection up to 100 A
- MID B+D, for billing purposes
- Accuracy class B (1%)
TCP/IP interface

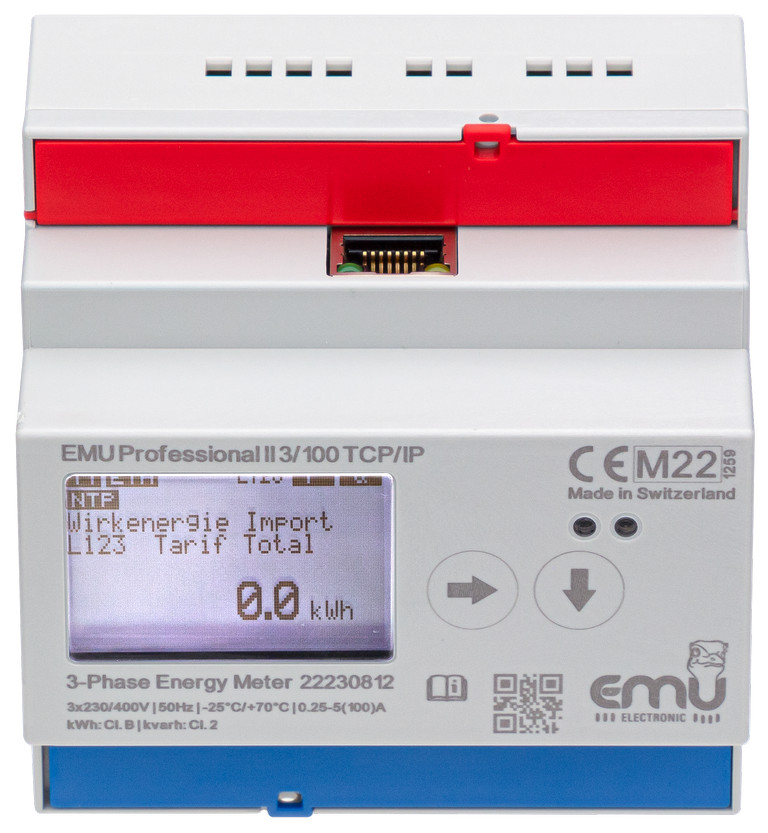

The built-in LAN TCP/IP interface is protected against dirt and manipulation.

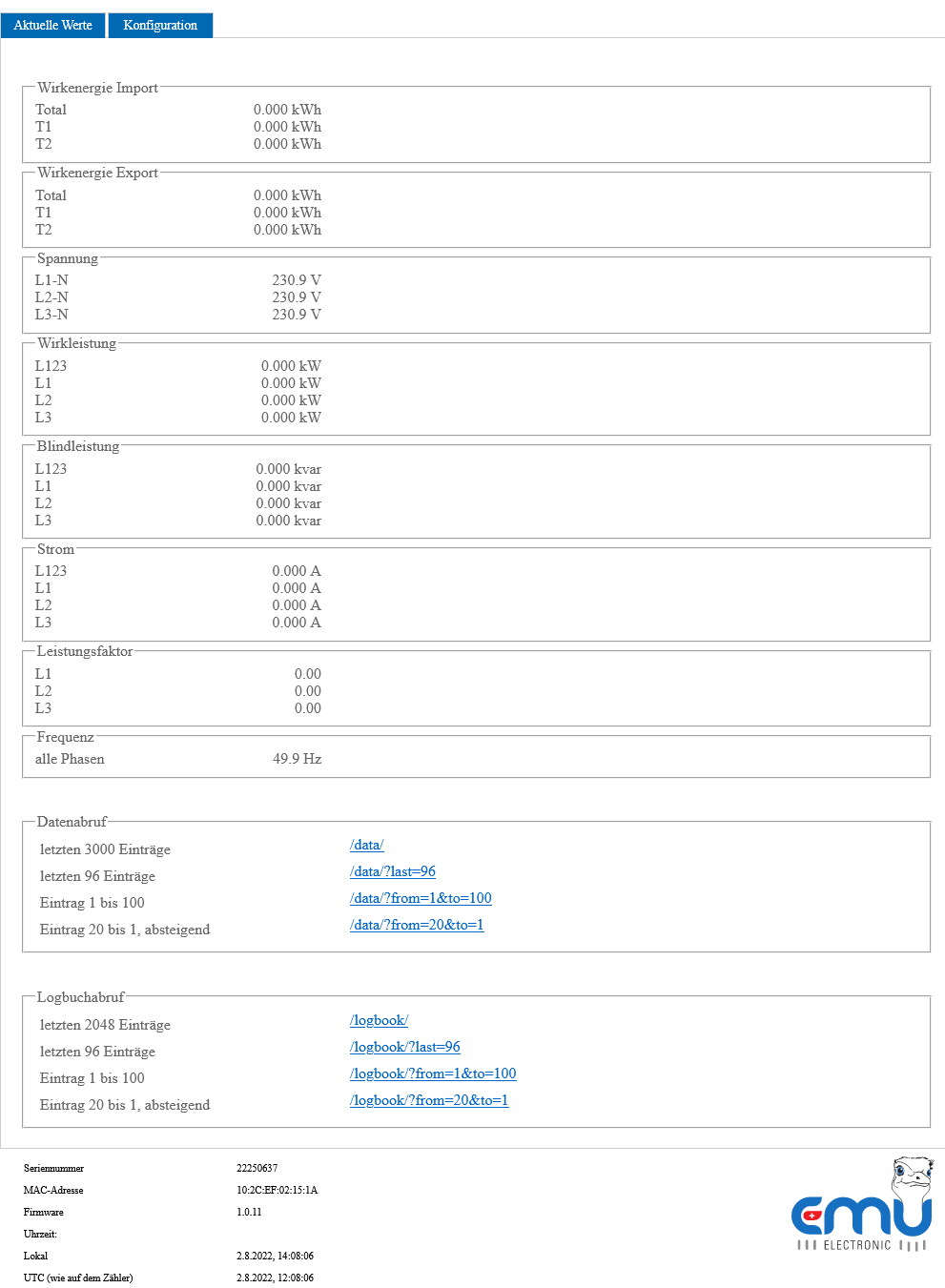

You can analyse different measurement readings via your web browser and IP address in a LAN or WAN.
- Remote reading via Modbus TCP
- HTTP-GET API
- NTP time server
- Buffered clock with synchronisation
- DHCP or fixed IP
Modbus TCP
Modbus TCP is similar to Modbus RTU, but TCP/IP packages are used to transfer data. TCP-Port 502 is reserved for Modbus TCP.
Power meter readings
- Active energy consumption (kWh) and supply (kWh)
- Reactive energy consumption (kvarh) and supply (kvarh)
- Active power (kw)
- Reactive power (kvar)
- Apparent power (kVA)
- Current (A)
- Frequency (Hz)
- Number of voltage failures
LCD-Display
Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.
Display language e.g. english or german can be selected by the keys.
Power meter configuration
Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.

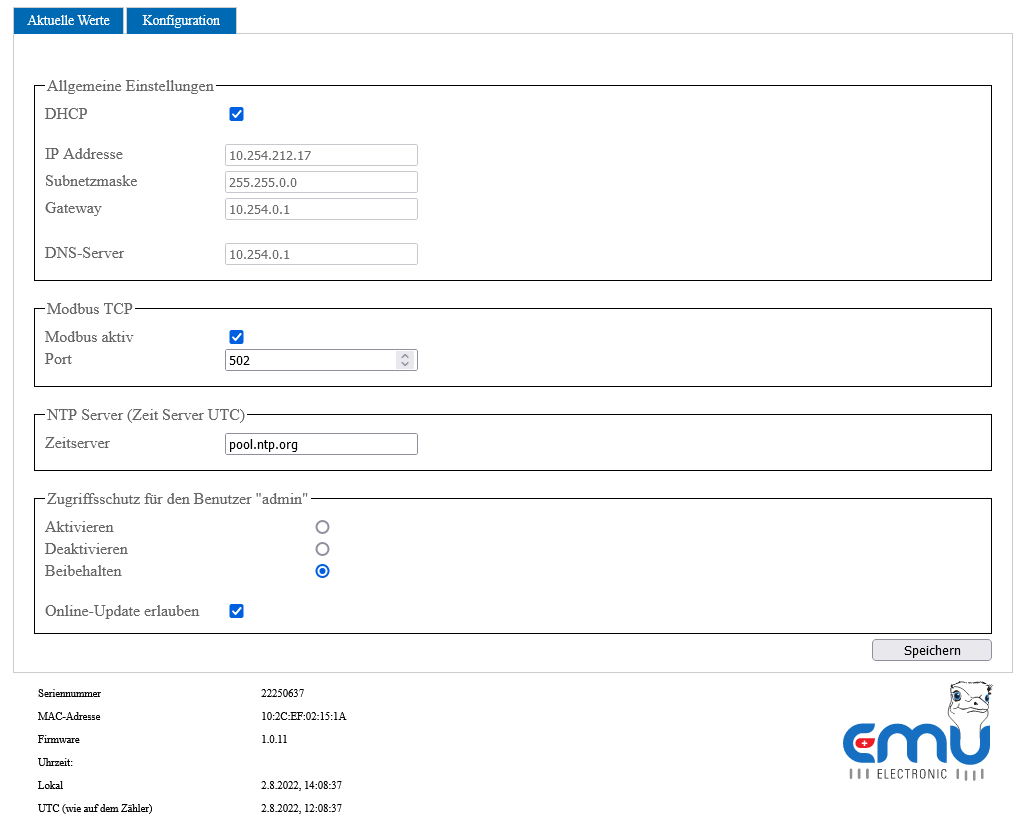

Network parameters are easy to configure via the website.
S0 pulse output
The 3-phase power meter EMU Professional II 3/100 TCP/IP features a configurable S0 pulse output for active or reactive energy
- Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000
- Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms
Power meter configuration ex factory
- Netwok configuration: DHCP
- S0 pulse output: 1'000 Impulse/ 40 ms
Manufacturer
The 3-phase LAN power meter meter is produced in Switzerland by EMU Electronic Ltd.
More information: https://www.emuag.ch
| Approval: | MID B+D |
|---|---|
| Connection: | 3ph. Direct 100A |
| Interface: | TCP/IP, http-get API, Modbus TCP |
