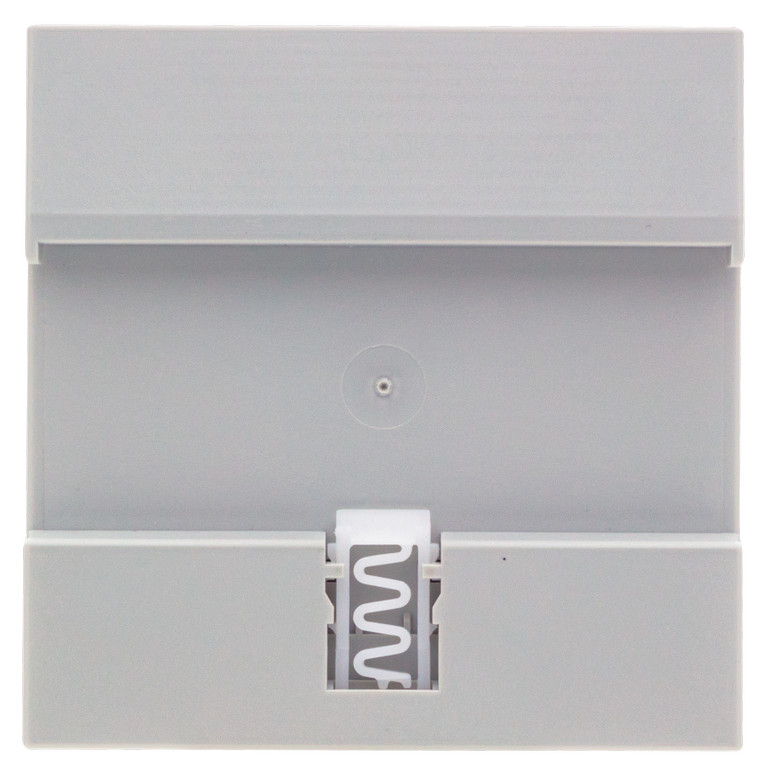

EMU Professional II 3/100
The 3-phase MID approved power meter EMU Professional II 3/100 for DIN rail mounting features a built-in S0 pulse output and is designed for submetering and cost savings.
Features
- Bidirectional three-phase power meter
- 3x230/400V
- Direct connection up to 100 A
- MID B+D, for billing purposes
- Accuracy class B (1%)
Power meter readings
- Active energy consumption (kWh) and supply (kWh)
- Reactive energy consumption (kvarh) and supply (kvarh)
- Active power (kw)
- Reactive power (kvar)
- Apparent power (kVA)
- Current (A)
- Frequency (Hz)
- Number of voltage failures
LCD-Display
Reading and setting parameters is user-friendly by a 38x28 mm graphic LCD display with LED backlight. This provides excellent visibility of numbers and letters.
Display language e.g. english or german can be selected by the keys.
Power meter configuration
Touch-sensitive control buttons are used for configuration. A sealable service button must be pressed for each configuration change.
The control keys are used to configure the M-Bus primary and secondary address, and the baud rate.
S0 pulse output
The 3-phase power meter EMU Professional II 3/100 features a configurable S0 pulse output for active or reactive energy
- Pulse rate per kWh / kvarH: 1,10,100, 1000 or 10000
- Pulse length in milliseconds: 2ms, 10ms, 30ms, 40ms, 120 ms
Power meter configuration ex factory
- S0 pulse output: 1'000 Impulse/ 40 ms
Manufacturer
The 3-phase power meter meter is produced in Switzerland by EMU Electronic Ltd.
More information: https://www.emuag.ch
Approval: | MID B+D |
---|---|
Connection: | 3ph. Direct 100A |
Interface: | S0 pulse output |
