DELTA III M-Bus | G3/4, 1,5 m³/h, 110mm
Product number:
BAAC10CABM
Manufacturer:
Helvatron AG
Manufacturernumber:
BAAC10CABM
Product information "DELTA III M-Bus | G3/4, 1,5 m³/h, 110mm "
DN15 BTU Meter with M-Bus 110 mm, G3/4, 1.5 m³/h

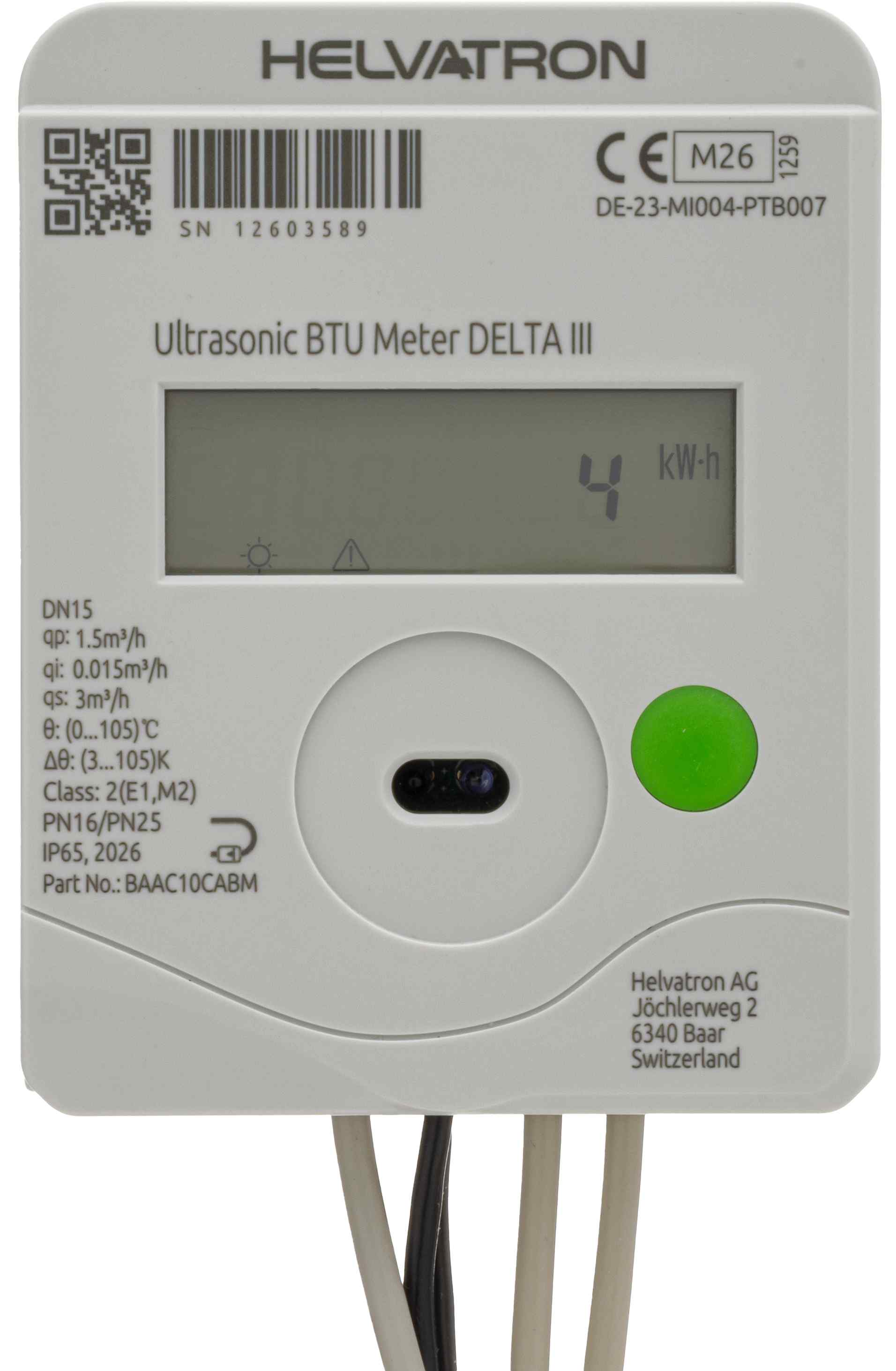

Helvatron DELTA III ultrasonic BTU meter DN15 (110 mm), G3/4, 1.5 m³/h with M-Bus interface and MID approval for billing purposes.
- Nominal size: DN 15, connection thread: G3/4B
- Nominal flow qp: 1.5 m³/h, qi: 15 l/h, qs: 3.0 m³/h
- Installation length: 110 mm
- Measurement technology: Ultrasonic measurement
- Temperature sensor: 5.2 mm, 1.5 m temperature sensor
- MID approval (Module B: PTB Germany / Module D: METAS Switzerland)
- Remote reading: M-Bus interface, e.g. with M-Center
- Installation: Return line, PN16/PN25
Ultrasonic technology: advantages for billing and long-term operation
Ultrasonic measurement means no moving parts – resulting in less wear, stable measurement values and significantly lower maintenance over the entire service life.M-Bus remote reading: integration into billing and energy management
This DN15 version (G3/4B, installation length 110 mm) is designed for typical apartment and residential installations where billing reliability and digital readability are essential.With the integrated M-Bus interface, the meter can be connected directly to existing billing systems and M-Bus infrastructures – ideal for existing buildings where stable, wired communication is preferred.
Practical benefits for operators and billing service providers:
- Remote reading without entering apartments and without manual reading errors
- Annual and monthly values stored in the meter (for reporting and plausibility checks)
- Scalable within the M-Bus network (e.g. via data logger/gateway)
Typical applications:
Apartment buildings, residential complexes/districts, contracting, commercial properties, energy monitoring.
Manufacturer: Helvatron AG, Article number: BAAC10CABM
